(VAOB85) 8.5ml Fluorescence Cuvette, Bonded, Lightpath 28mm, 12x30x30 mm, 4 Clear Windows
$103.00
This wide clear wall cuvette is for fluorescence applications, with dual-path lengths of 28 mm. Use with aqueous samples only. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For aqueous samples only
Description

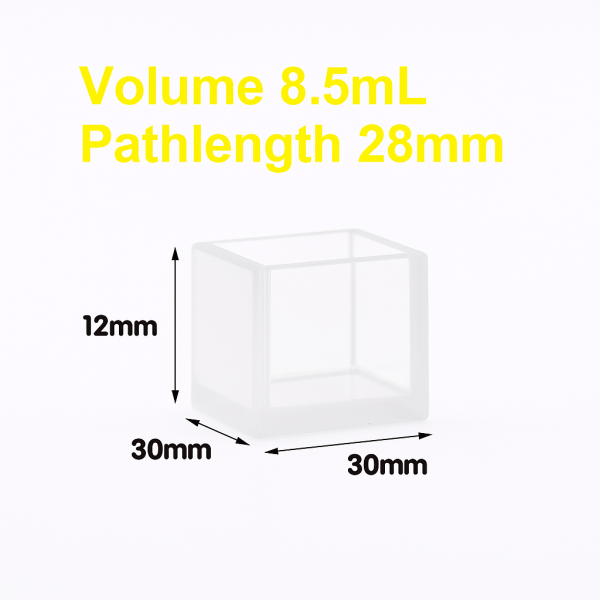

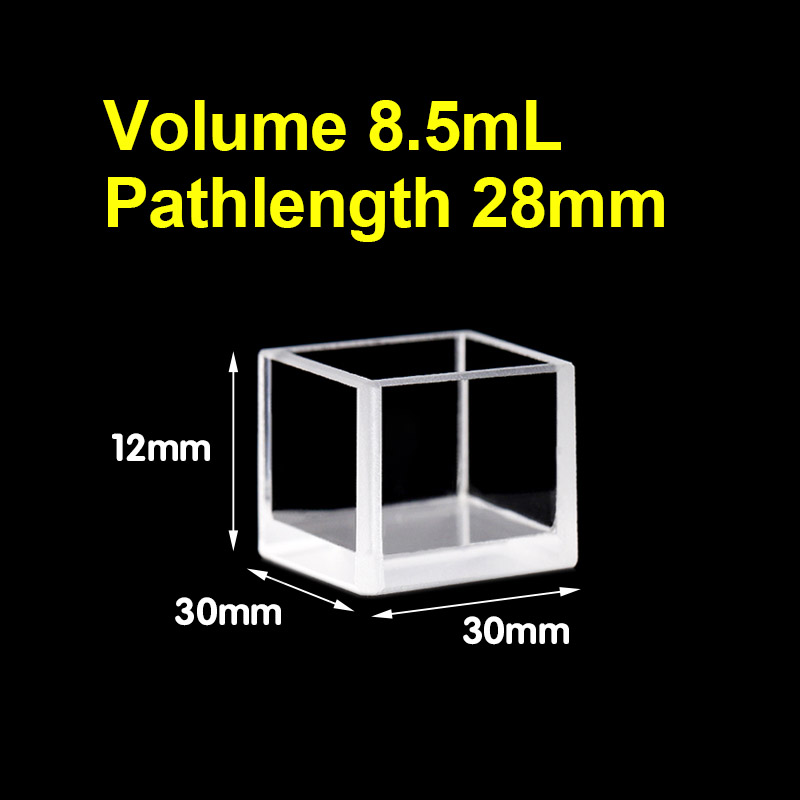

VAOB85 Bonded Quartz Fluorescence Cuvette is a 4-window cuvette with a 28 mm optical path length and an 8.5 ml volume.
It features a wide clear wall design, ideal for fluorescence measurements that require side detection and enhanced optical clarity.
Bonded fabrication ensures cost-effective construction and good chemical resistance under typical laboratory conditions.
Key Features
- 28 mm optical path length — suitable for high-sensitivity fluorescence and absorbance measurements.
- 4-window design — allows side detection, enabling fluorescence excitation and emission experiments.
- Bonded fabrication — provides stable performance for most general laboratory applications.
- Wide wall geometry — optimized for fluorescence setups with precise optical alignment.
- Broad wavelength range — 190 – 2500 nm, suitable for UV/VIS and NIR applications.
Typical Applications
- Fluorescence spectroscopy (side detection and excitation).
- UV/VIS absorbance and transmission studies.
- Routine lab assays and standard optical experiments.
- Educational and R&D environments where cost-effective bonded construction is preferred.
Bonded Fabrication Notes
- Bonded fabrication offers cost-effective performance for routine measurements.
- Not recommended for high-temperature applications or long-term solvent exposure.
- Bonded seams are more sensitive to aggressive organic solvents compared to fused fabrication.
- Suitable for aqueous and mild solvent environments.
Cuvette Specifications
| Type | Fluorescence Quartz Cuvette | Optical Path Length | 28 mm |
| Article No. | VAOB85 | Volume | 8.5 ml |
| Measuring Method | Fluorescence Cells | Clear Walls | 12 × 30 mm |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 12 mm | Width (Inside) | 28 mm |
| Width (Outside) | 30 mm | Depth (Inside) | 28 mm |
| Depth (Outside) | 30 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Bonded* | Package | Cell Only |
Note: Bonded fabrication is ideal for standard fluorescence and absorbance work but is less durable than fused quartz for extreme conditions.
The 4-window design supports precise fluorescence measurement with good optical clarity and light transmission.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
