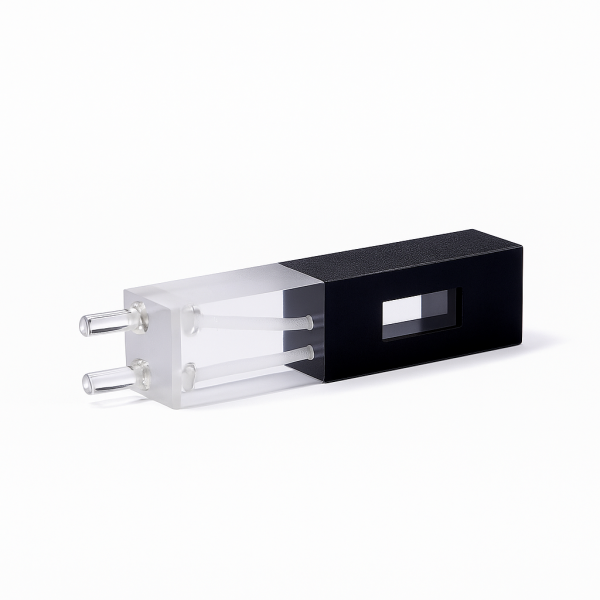

(VALB400) 400uL Micro Cuvette with Glass Tubed, Pathlength 10mm, 2 Windows, Z dim 15mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	No

SKU: VALB400

(VALB400) 400uL Micro Cuvette with Glass Tubed, Pathlength 10mm, 2 Windows, Z dim 15mm

(VALB400) 400uL Micro Cuvette with Glass Tubed, Pathlength 10mm, 2 Windows, Z dim 15mm - Image 2

(VALB400) 400uL Micro Cuvette with Glass Tubed, Pathlength 10mm, 2 Windows, Z dim 15mm - Image 3

$181.00

In Stock

This flow through cuvette is for absorption applications, with a path length of 10 mm. For aqueous samples only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded, For aqueous samples only!

SKU: VALB400 Categories: All Cuvettes & Cells, Bonded Cuvettes, Custom Cuvettes, Cuvettes & Flow Cells, Flow Through Cells, Flow Through Cuvettes with Top Connectors, Micro Cuvettes <3.5mL, Other Cuvettes, Products, Spectrometer Cuvettes Tags: custom cuvette, flow cell, flow through cell, micro cell, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

Brand: Qvarz | Product Type: Quartz Flow Through Cuvette | MPN: VALB400

The VALB400 Quartz Flow Through Cuvette features a 10 mm optical path length and 400 μL sample volume, designed for UV/VIS absorption spectroscopy and flow-based analytical applications. Bonded fabrication provides stable performance with clean flow channels, making it ideal for aqueous sample measurement in both research and OEM system integration.

Bonded Fabrication Features

High UV/VIS transmittance from 190 to 2500 nm
Path length tolerance of ±0.06–0.08 mm for dependable measurement accuracy
Clean, adhesive-free flow channel construction
Best suited for aqueous samples (not recommended for organic solvents or strong bases)
Cost-effective and fast manufacturing turnaround

Key Advantages

10 mm standard optical path length ensures compatibility with most spectrophotometers
400 μL internal volume reduces sample waste while maintaining reliable signal strength
15 mm Z-dimension aligns with common spectrometer beam heights
Quartz optical windows offer high clarity and UV/VIS stability
Easy integration into lab or OEM flow systems

Typical Applications

UV/VIS absorption spectroscopy of aqueous solutions
Micro-volume flow injection analysis (FIA)
Online process monitoring and quality control
OEM detector and flow cell integration

Technical Specifications

Type	Flow Through Cuvette	Optical Path Length	10 mm
Article No.	VALB400	Volume	400 μL
Measuring Method	Absorption Cells	Connector	Glass Tubes
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)
Outside Dimensions	Height: 45 mm Width: 12.5 mm Depth: 12.5 mm	Inside Dimensions	Aperture: 5 × 8 mm Depth: 10 mm Z-Dim: 15 mm
Fabrication Method	Bonded*	Package	Cell Only

Bonded fabrication provides good optical alignment and stable UV/VIS performance at lower cost and shorter production time. Ideal for aqueous samples and routine absorption measurements. Not recommended for organic solvents or strong bases.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
