(VNE066) Customized Flow Cell, Bonded
$999.00
This custom cuvette is for flow through applications, with a customizable path length. For aqueous samples only. Use up to 100°C. The price is not final, request for a quote before ordering.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For aqueous samples only!
Description

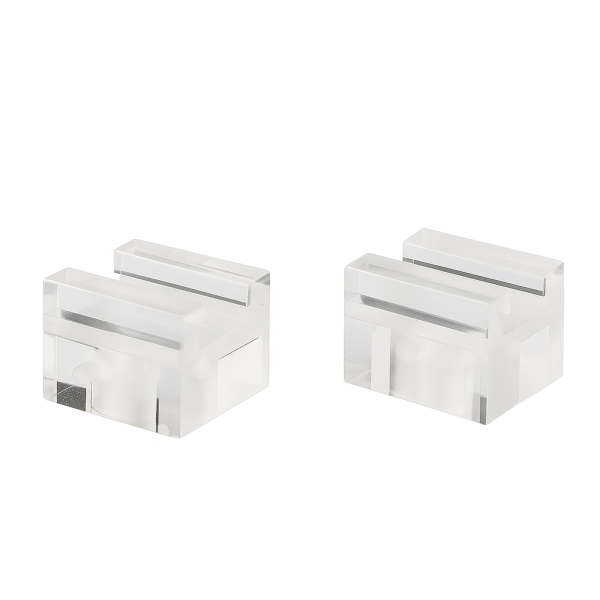

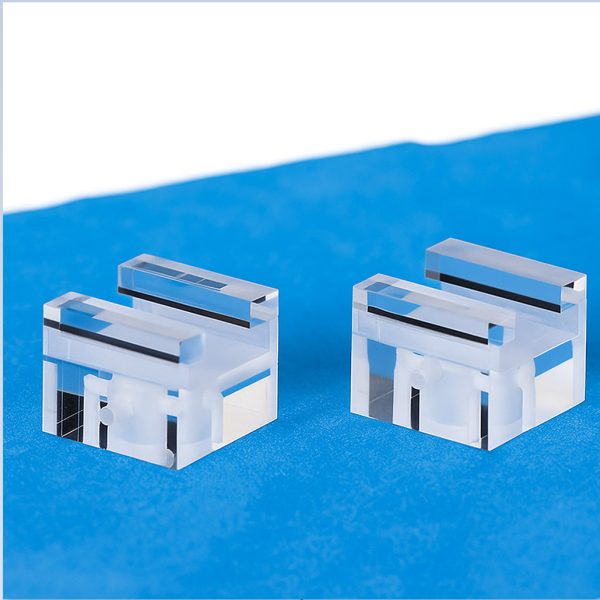

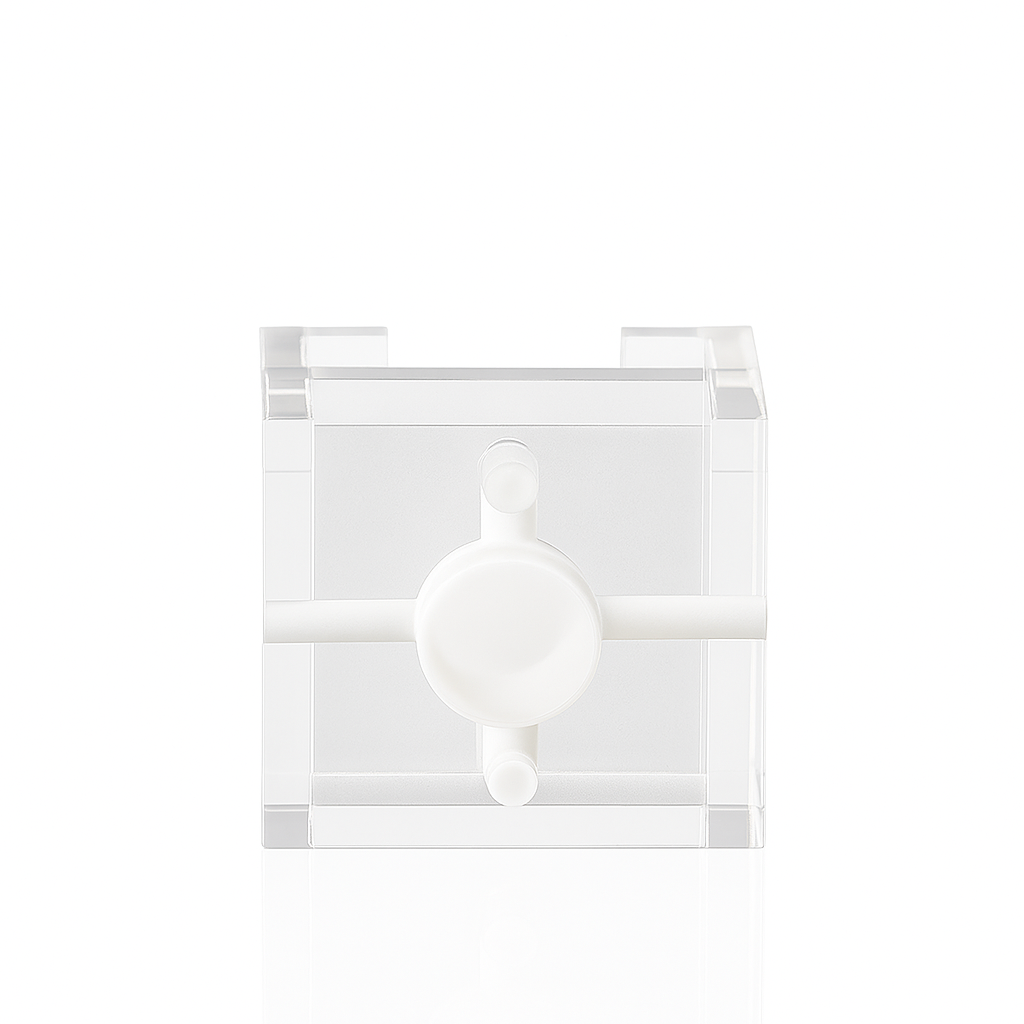

VNE066 – Customized Quartz Flow Cell (Bonded Fabrication, For Aqueous Samples)
The VNE066 is a cost-effective, customizable quartz flow cuvette designed primarily for aqueous sample analysis, kinetic studies, and online monitoring.
Constructed using bonded fabrication, this flow cell provides excellent optical performance at an affordable price, making it ideal for R&D projects, OEM integration, and fast prototyping.
Bonded fabrication allows rapid customization of optical path length, chamber geometry, and volume — offering significant flexibility compared to standard cuvettes. This design is best suited for aqueous solutions or buffered media. It is not recommended for organic solvents or harsh chemicals, as these may degrade the bonding interface over time.
Chemical Compatibility
Bonded quartz cuvettes are intended for use with water-based solutions only.
- ✔ Compatible: aqueous solutions, buffered solutions, mild acids and bases.
- ⚠ Limited compatibility with weak organic solvents; not recommended for continuous exposure.
- ❌ Not compatible: strong organic solvents (e.g. toluene, acetone, chloroform), HF, or corrosive chemicals.
Key Features
- Optimized for aqueous samples: suitable for most water-based analytical applications.
- Low-cost bonded fabrication: ideal for rapid customization and budget-sensitive applications.
- Custom optical path length and volume: flexible design for OEM or research use.
- Quartz material: excellent UV/VIS transmission (190–2500 nm).
- Compact structure: simple and lightweight design for easy integration.
Typical Applications
- Flow-through spectroscopy (UV/VIS)
- Kinetic and online reaction monitoring
- Biochemical and environmental analysis
- R&D testing and OEM instrument integration
Flow Cell Specifications
| Type | Customized Cuvette | Optical Path Length | To be Customized |
| Article No. | VNE066 | Volume | To be Customized |
| Measuring Method | Custom Cells | Connector | Quartz |
| Number of Windows | – | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | |||
| Height | 8 mm | Width | 10 mm |
| Depth | 10 mm | Fabrication Method | Bonded* |
| Inside Dimensions | |||
| Height | – | Width | – |
| Depth | – | Package | Cell Only |
Notes on Use
- Bonded cuvettes are designed for aqueous applications only.
- Do not use strong organic solvents or HF to avoid delamination or damage.
- Excellent choice for low-cost custom projects, fast turnaround, and instrument integration.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
