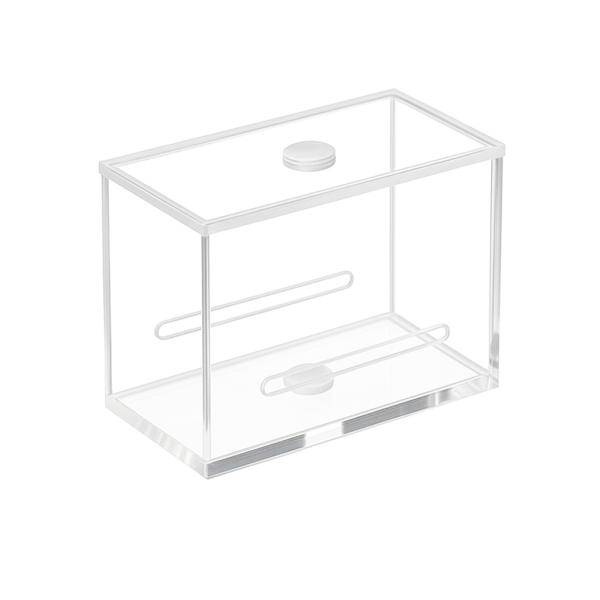

(VNE044) 24mL Customized Cuvette with M6 Thread, 6 Clear Walls, Lightpath 20/40 mm, Glued
$439.00
This 6 clear wall flow cell has a path length of 20/40mm. For aqueous samples only. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded*
Description
VNE044 – 24 mL Custom Quartz Cuvette with M6 Thread (6 Clear Walls, 20 / 40 mm Lightpath, Bonded Fabrication)
The VNE044 is a large-volume custom quartz cuvette designed for specialized fluorescence and absorbance experiments. It features a dual optical path length of 20 mm and 40 mm, 6 optically clear windows for multi-angle detection, and an M6 threaded port for fluid handling or sensor integration.
With its 24 mL capacity, this cuvette is ideal for continuous-flow measurements, reaction monitoring, or OEM system integration.
Key Features
- Dual optical path lengths (20 / 40 mm): supports flexible experimental setups.
- Large 24 mL volume: ideal for high-capacity or flow-based applications.
- 6 clear optical windows: enable multi-angle fluorescence or absorbance detection.
- M6 threaded port: convenient for tubing connections or probe installation.
- Bonded fabrication: rapid, cost-effective customization for aqueous systems.
- Material: high-purity quartz with UV/VIS transmission from 190 – 2500 nm.
Typical Applications
- Fluorescence spectroscopy with multi-angle detection
- Continuous flow or reaction monitoring experiments
- Custom or OEM instrument integration
- Environmental and biochemical analysis
Cuvette Specifications
| Type | 24 mL Custom Cuvette | Optical Path Length | 20 / 40 mm |
| Article No. | VNE044 | Volume | 24 mL |
| Measuring Method | Fluorescence Cells | Clear Walls | 6 Clear Walls |
| Number of Windows | 6 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | |||
| Height | 31 mm | Width | 42 mm |
| Depth | 22 mm | Fabrication Method | Bonded* |
| Inside Dimensions | |||
| Width (Inside) | 40 mm | Depth (Inside) | 20 mm |
| Material | Quartz | Screw Thread | M6 |
About Bonded Fabrication
- Bonded cuvettes are assembled with optical adhesives, allowing fast turnaround and cost efficiency.
- Recommended for aqueous samples or mild buffer solutions.
- Not suitable for strong acids, bases, or aggressive organic solvents.
- Ideal for custom prototyping and instrument-specific configurations.
Note: This is a custom product for specialized applications. Please contact us to discuss your required dimensions, thread type, or configuration.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
