(VNE038) 17mL Standard Absorption Cuvette with Screw Cap, Molded, Round Bottom, Lightpath 20mm
$372.00
This absorption cuvette is for anaerobic work. A cap with a center hole (request) is available for sterile injections. Free extra septas if needed. Use -60°C – 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
Add to Wishlist
- Type: Molded
Description
Sealable Standard Absorption Cuvette Specifications
1 | 2 | 3 | 4 | |||
---|---|---|---|---|---|---|
Type | Screw Cap Sealable Cells | Optical Path Length | 20 mm | |||
Article No. | VNE038 | Volume | 17 ml | |||
Measuring Method | Absorption Cells | Material | Quartz | |||
Number of Windows | 2 | Wavelength Range | UV/VIS (190 - 2500 nm) | |||

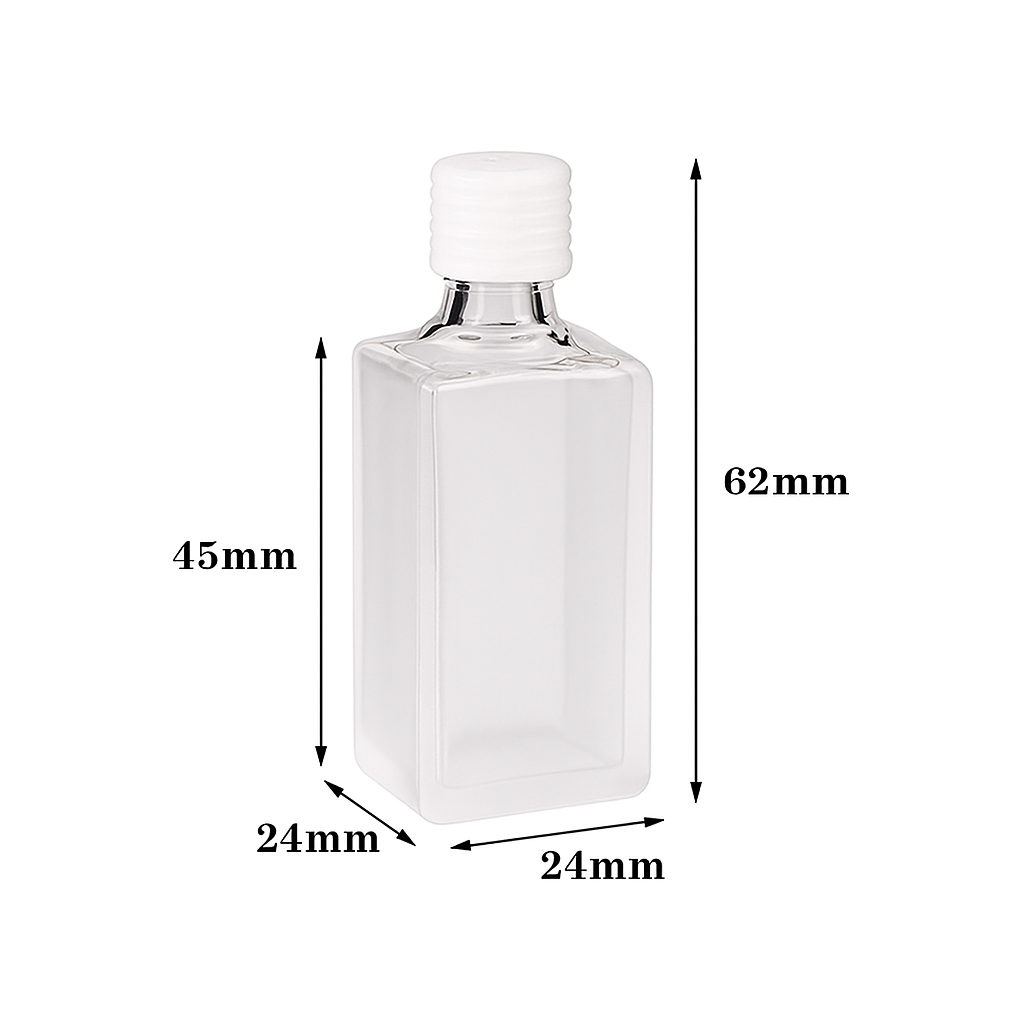

Outside Dimensions | Inside Dimensions | |||||
Height | 62 mm | Width | 20 mm | |||
Width | 24 mm | Depth | 20 mm | |||
Depth | 24 mm | Center Height | 8.5 - 20 mm | |||
Fabrication Method | Molded* | Package | Cell, Cap & Septa |
Comparison of Fabrication Types
1 | 2 | 3 | 4 | ||
---|---|---|---|---|---|
*Molded | *Fused | *Bonded / Glued | |||
UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
Transmission Matched | On Request | No | No | ||
Transmission > 80% | Yes | Yes | Yes | ||
Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
Resistant to Organic Solvents | Yes | Yes | No | ||
Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
Usable upto 1200°C (2192°F) | Yes | No | No | ||
0 Variations Reading | On Request | No | No | ||
Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
Adhesives | No | No | Yes | ||
Storage | Short Term Storage | Clean After Use | Clean After Use | ||
Available Material | Fused Quartz Material | ||||
Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. |
