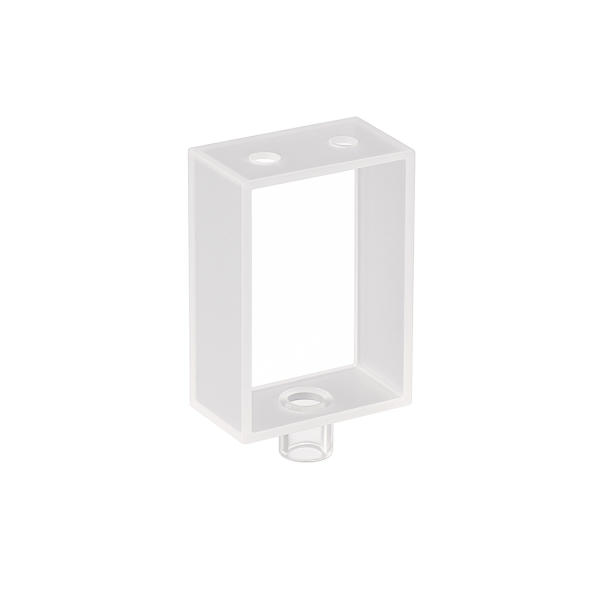

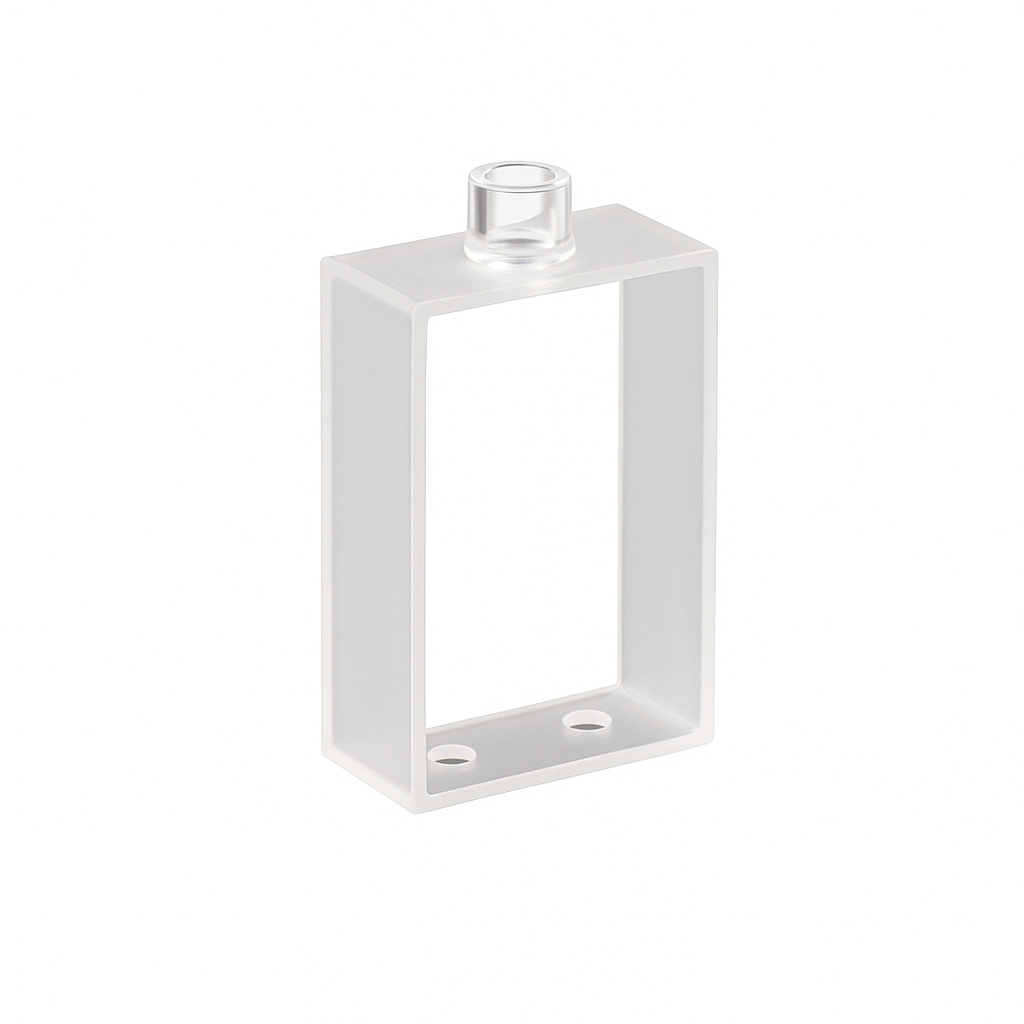

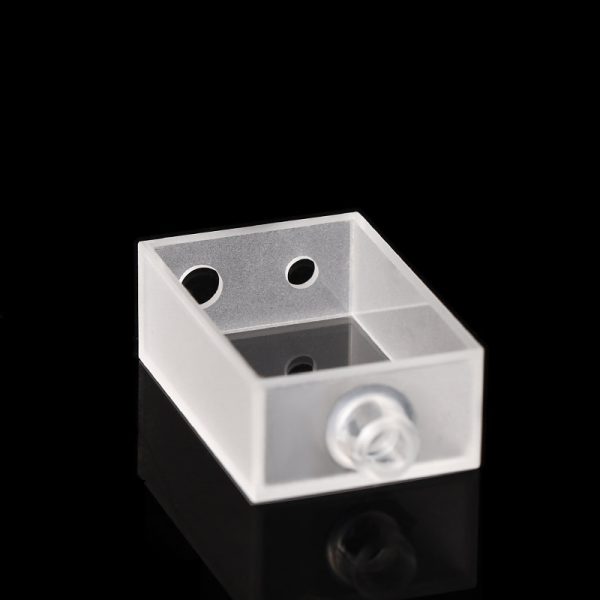

(VNE030) 6mL Customized Flow Cell, 2 Windows, Lightpath 10mm, Bonded
$999.00
This flow-through cuvette is for absorption applications, with a path length of 10 mm. For aqueous samples only. Use up to 100°C. The price is not final, request for a quote before ordering.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For aqueous samples only!
Description
VNE030 – 10 mm Quartz Flow Through Cuvette (6 mL, 2 Windows)
The VNE030 flow through cuvette is designed for medium-volume UV/Vis absorption measurements with a 10 mm optical path length and a 6 mL internal volume. Made with durable Bonded fabrication, this cuvette provides stable performance for continuous flow or in-line applications. The quartz body ensures excellent UV and visible light transmission, covering a wide spectral range of 190–2500 nm.
Key Features
- 🔬 10 mm optical path length for standard UV/Vis absorbance applications.
- 💧 6 mL internal volume suitable for medium flow systems and reaction monitoring.
- 🌈 High UV/Vis transparency: 190 – 2500 nm.
- 🧪 Quartz construction ensures chemical and thermal resistance.
- 🧼 Bonded fabrication for stable tolerance and cost-effective customization.
Flow Cell Specifications
| Type | Flow Through Cuvette | Optical Path Length | 10 mm |
| Article No. | VNE030 | Volume | 6 mL |
| Measuring Method | Absorption Flow Cells | Connector | Quartz |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | |||
| Height | 32 mm | Width | 22 mm |
| Depth | 12 mm | ||
| Inside Dimensions | |||
| Height | 30 mm | Width | 20 mm |
| Depth | 10 mm | Package | Cell Only |
| Fabrication Method | Bonded* | ||
Applications
- UV/Vis absorption and transmission measurements
- Flow-through reaction monitoring
- Chromatography detection systems
- In-line analytical processes
Note: Bonded fabrication provides rapid customization and low cost. Recommended for aqueous and general analytical applications.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
