(VLM860) 860μL Flow Cell, Quartz Tubes, 2 Windows, Lightpath 1mm, Molded
30%Custom
$547.00 Original price was: $547.00.$383.00Current price is: $383.00.
This flow-through cuvette is for absorption applications, with a path length of 1 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description
VLM860 Flow Cell is a precision quartz flow cell designed for absorption spectroscopy and general optical measurement applications requiring stable and clean flow. With a 1 mm optical path length and an internal volume of 860 μL, it’s well-suited for low-to-medium volume flow systems that demand high signal stability and optical accuracy.
This model is manufactured using molded fabrication, ensuring excellent optical clarity, smooth flow channels, and highly consistent path length with a tolerance of ±0.01 mm — significantly more precise than bonded or fused cuvettes. It’s compatible with quartz connectors and covers a broad spectral range for UV/VIS measurements.
Molded Fabrication Features
- Superior optical surface finish with high light transmission.
- No adhesives — clean, inert, and stable flow channel.
- High thermal resistance: up to 1200 °C short-term, 600 °C continuous use.
- Excellent chemical compatibility: resistant to most acids, bases, and organic solvents except HF; tolerates toluene and acetone.
- Path length tolerance ±0.01 mm for superior measurement reproducibility.
Typical Applications
- UV/VIS absorbance spectroscopy
- Liquid chromatography detectors
- Flow-based analytical systems
- OEM instrumentation requiring high optical precision
Key Features
- 1 mm optical path length with 860 μL internal volume
- 2 clear optical windows for precise light transmission
- Molded fabrication ensures superior accuracy and chemical durability
- Quartz connectors for stable fluid connections
- UV/VIS spectral range 190 – 2500 nm
Technical Specifications
| Type | Flow Cell | Optical Path Length | 1 mm |
| Article No. | VLM860 | Volume | 860 μL |
| Measuring Method | Absorption Cells | Connector | Quartz |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |

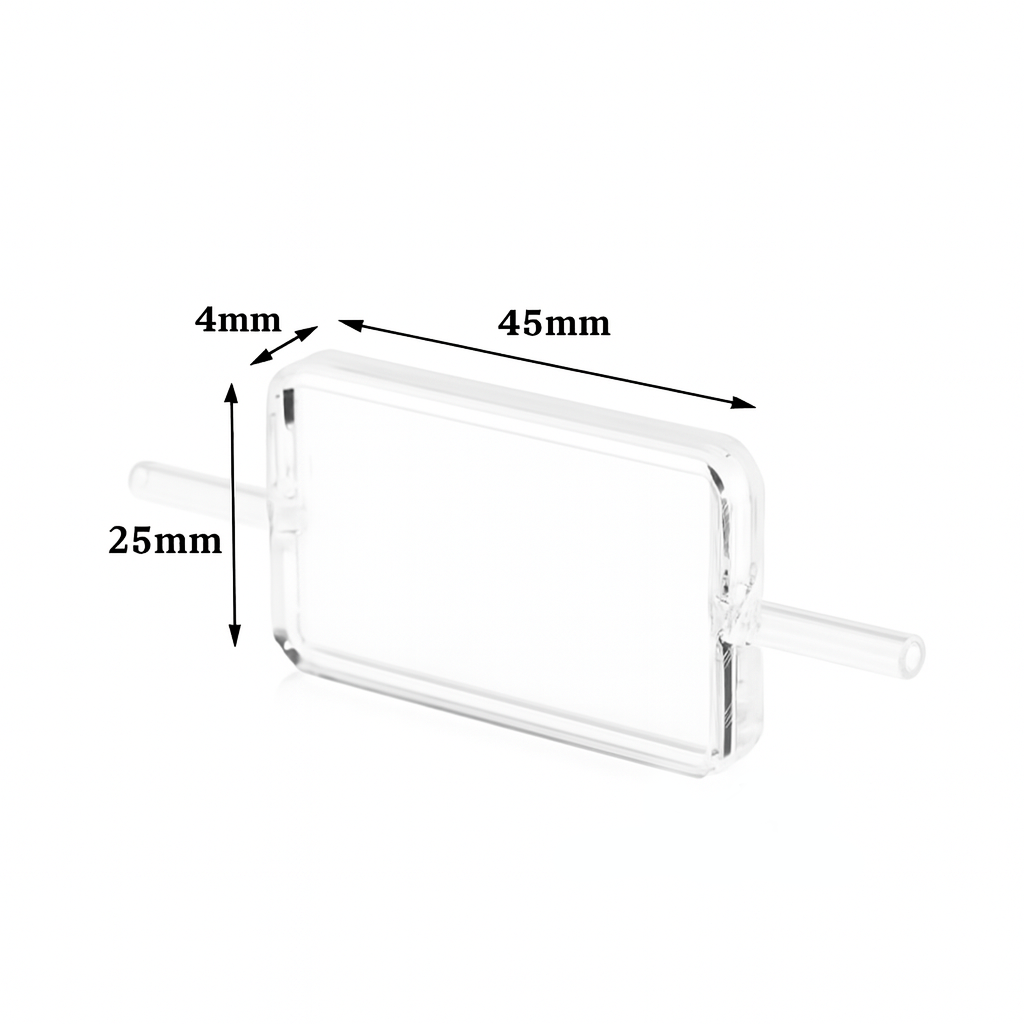

| Outside Dimensions | Length: 45 mm Width: 25 mm Depth: 4 mm |
Inside Dimensions | Length: 41 mm Width: 22 mm Depth: 1 mm |
| Fabrication Method | Molded* | Package | Cell Only |
Note: Molded fabrication provides industry-leading path length precision (±0.01 mm), excellent chemical resistance, and superior optical quality — making this flow cell an excellent choice for high-stability absorbance and OEM analytical applications.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
