(VLM130) 130uL Flow Cell for ZETA Potential Analyzer, Lightpath 1/5mm, 4 Windows, Molded
$661.00
This flow-through cuvette is for fluorescence applications, with dual path lengths of 1 / 5 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description

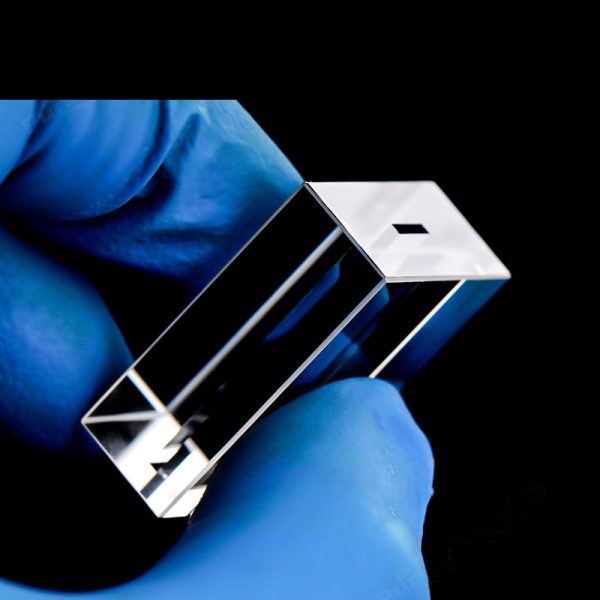

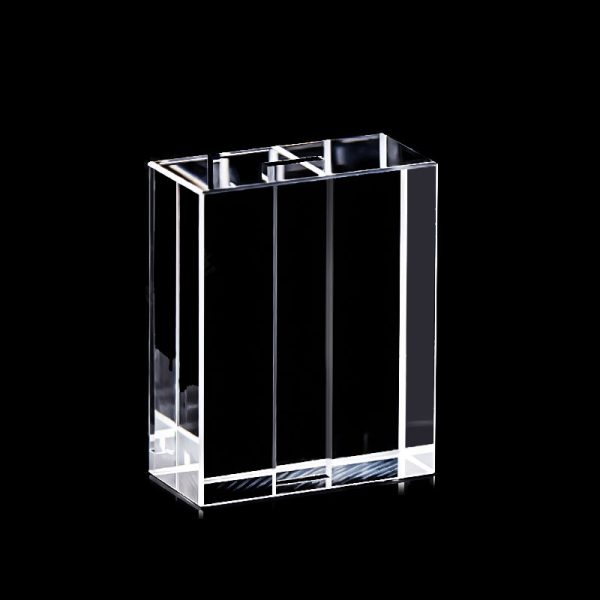

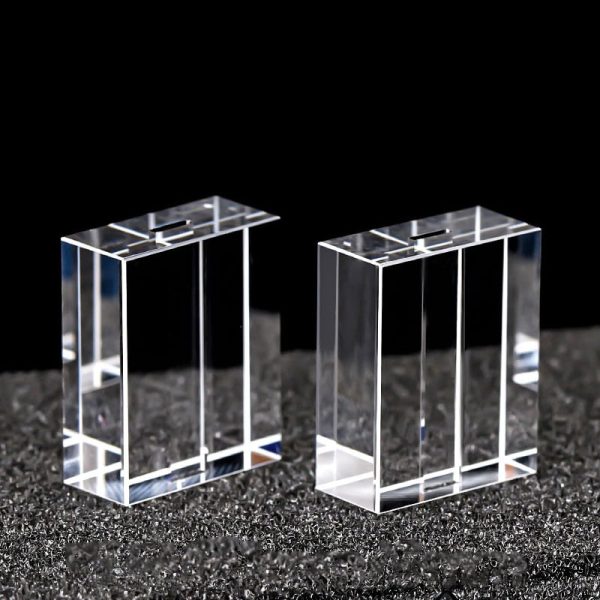

VLM130 Custom Quartz Flow Cuvette is a compact, precision-engineered cell designed for zeta potential analyzers and other specialized optical instruments. With dual 1 mm and 5 mm optical path lengths and a 130 μL internal volume, it supports flexible experimental configurations and is particularly suited for fluorescence and absorbance measurements in small sample volumes.
The 4-window design allows multi-angle detection, which is advantageous for advanced characterization methods. Its open-end construction provides seamless integration with external systems, and the Molded fabrication method ensures excellent optical transmission and durability for repeated use in demanding lab environments.
Typical Applications
- Zeta potential and particle size analysis
- Fluorescence spectroscopy with dual path options
- UV/VIS absorbance measurements
- Flow-based optical detection systems
- OEM and analytical instrument integration
Key Features
- Dual optical path lengths (1 mm / 5 mm) for flexible measurement setups
- 130 μL chamber volume optimized for small sample analysis
- 4-window configuration allows fluorescence or absorbance measurements
- Open-end design for easy connection to external systems
- Molded fabrication provides excellent UV/VIS transmission (190–2500 nm)
Technical Specifications
| Type | Custom Flow Cell | Optical Path Length | 1 / 5 mm |
| Article No. | VLM130 | Volume | 130 uL |
| Measuring Method | Fluorescence Cells | Connector | 2 Ends Open |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |

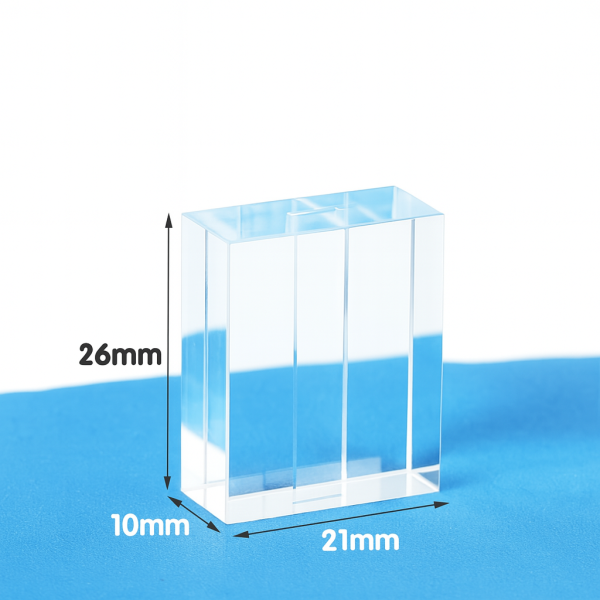

| Outside Dimensions | Inside Dimensions | ||
| Height | 26 mm | Width | 5 mm |
| Width | 21 mm | Depth | 1 mm |
| Depth | 10 mm | Covers | No |
| Fabrication Method | Molded* | Package | Cell Only |
Note: This is a specialized cuvette type commonly used in zeta potential instruments. Limited stock availability; lead time may apply.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
