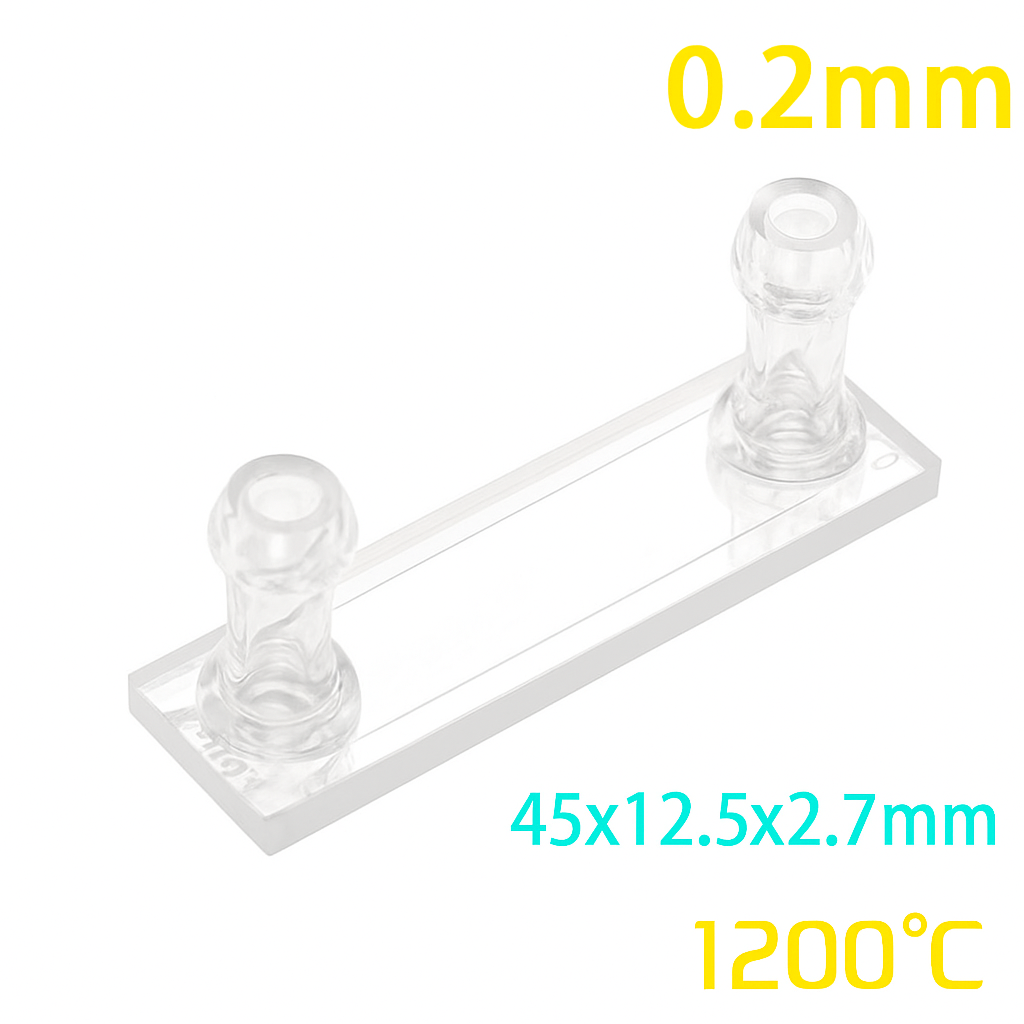

(VLM060) 60μL Flow Through Cell with Side Tubes, 2 Windows, Lightpath 0.2mm, Molded
This flow-through cuvette is for absorption applications, with a path length of 0.2 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
Add to Wishlist
Add to Wishlist
- Type: Molded
Flow Cell Specifications
|Type||Flow Cell||Optical Path Length||0.2 mm|
|Article No.||VLM060||Volume||60 μL|
|Measuring Method||Absorption Cells||Connector||Quartz|
|Number of Windows||2||Wavelength Range||UV/VIS (190 - 2500 nm)|
|Length||45 mm||Width||12.5 mm|
|Depth||2.7 mm||Fabrication Method||Molded*|
Comparison of Fabrication Types
|*Molded||*Fused||*Bonded / Glued|
|UV vis ( 190- 2500 nm)||Yes||Yes||Yes|
|Transmission Matched||On Request||No||No|
|Transmission > 80%||Yes||Yes||Yes|
|Resistant to Acids and Bases (except hydrofluoric acid)||Yes||Yes||No|
|Resistant to Organic Solvents||Yes||Yes||No|
|Usable upto 600°C (1112°F)||Yes||Yes||Yes|
|Usable upto 1200°C (2192°F)||Yes||No||No|
|0 Variations Reading||On Request||No||No|
|Fabrication||Molded||Assembled with Quartz Powder||Assembled with Glue|
|Storage||Short Term Storage||Clean After Use||Clean After Use|
|Available Material||Fused Quartz Material|
|Note||Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.|
QVARZ® Cuvettes Transmission Characteristics
Why QVARZ® Cuvettes and Cells?
QVARZ® is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ® cuvette is manufactured to the most exacting standards for reproducible results.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
