(VFSMS5) 1.75mL Semi-Micro Cuvette, Screw Cap, Molded, Width 5mm, 4 Windows

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFSMS5

(VFSMS5) 1.75mL Semi-Micro Cuvette, Screw Cap, Molded, Width 5mm, 4 Windows

(VFSMS5) 1.75mL Semi-Micro Cuvette, Screw Cap, Molded, Width 5mm, 4 Windows - Image 2

~~$469.00~~ Original price was: $469.00.$418.00Current price is: $418.00.

In Stock

This semi micro screw cap cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VFSMS5 Categories: Semi Micro Cuvettes, All Cuvettes & Cells, Cuvettes & Flow Cells, Fluorometer Cuvettes, Micro Cuvettes <3.5mL, Molded Cuvettes, Narrow Width Cuvettes, Products, Screw Cap Cuvettes Tags: fluorescence cuvette, narrow width cuvette, screw cap cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

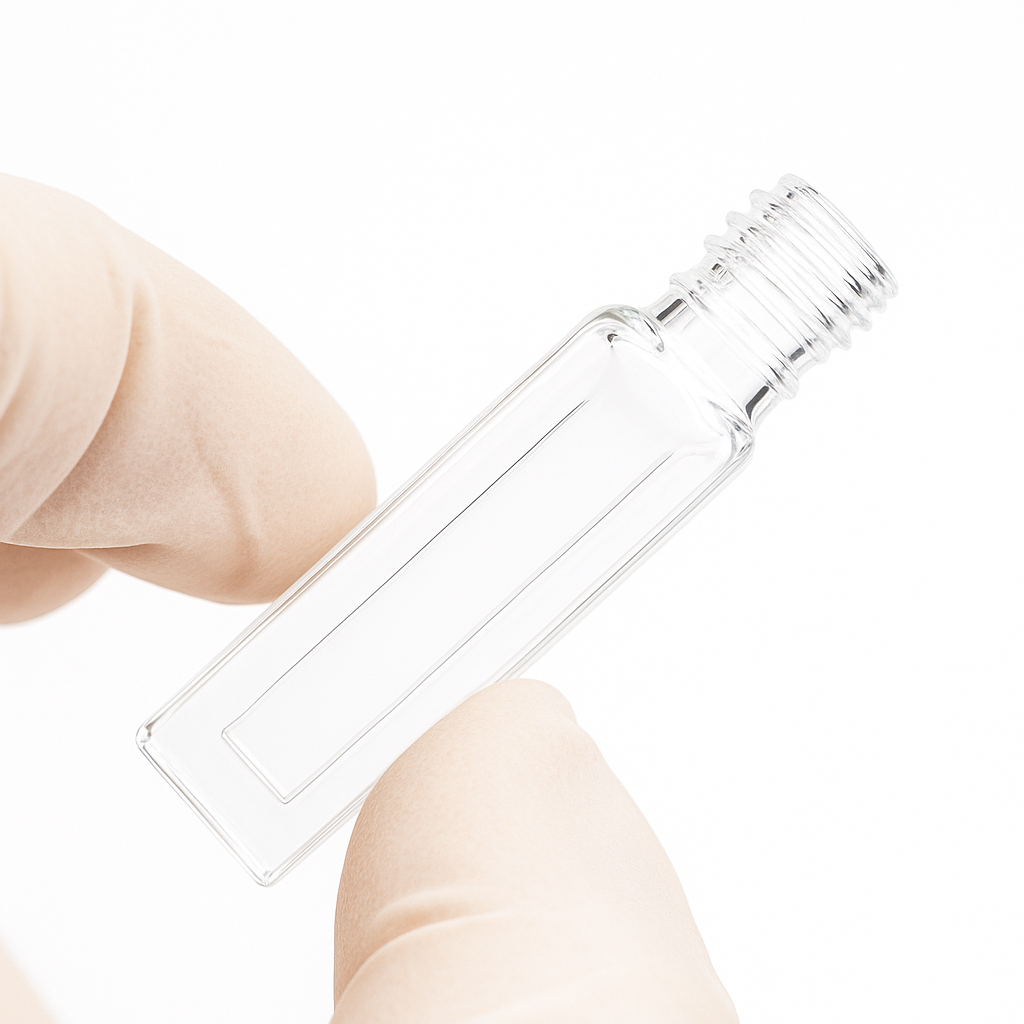

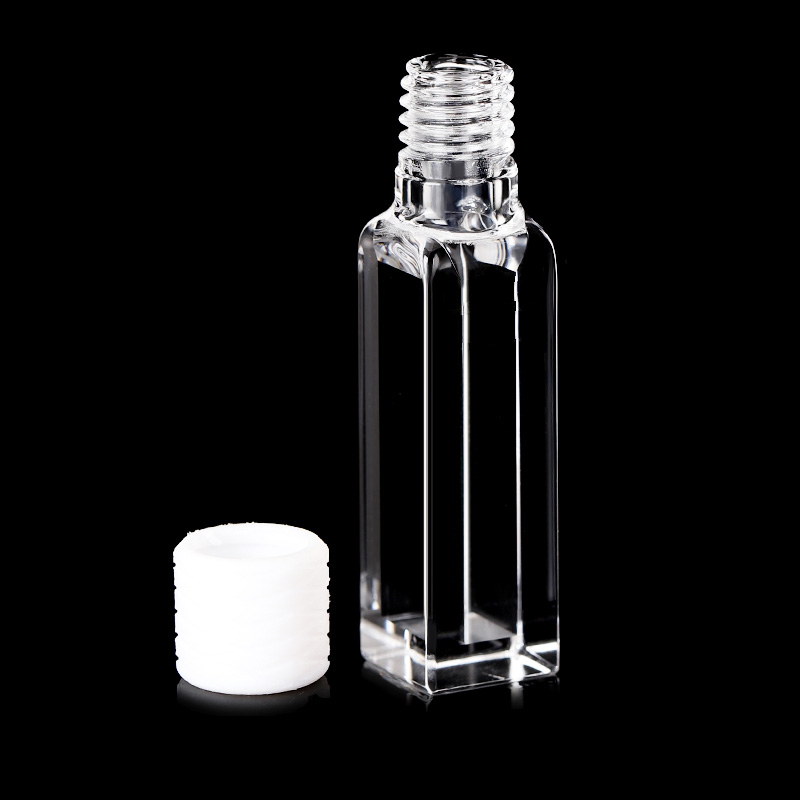

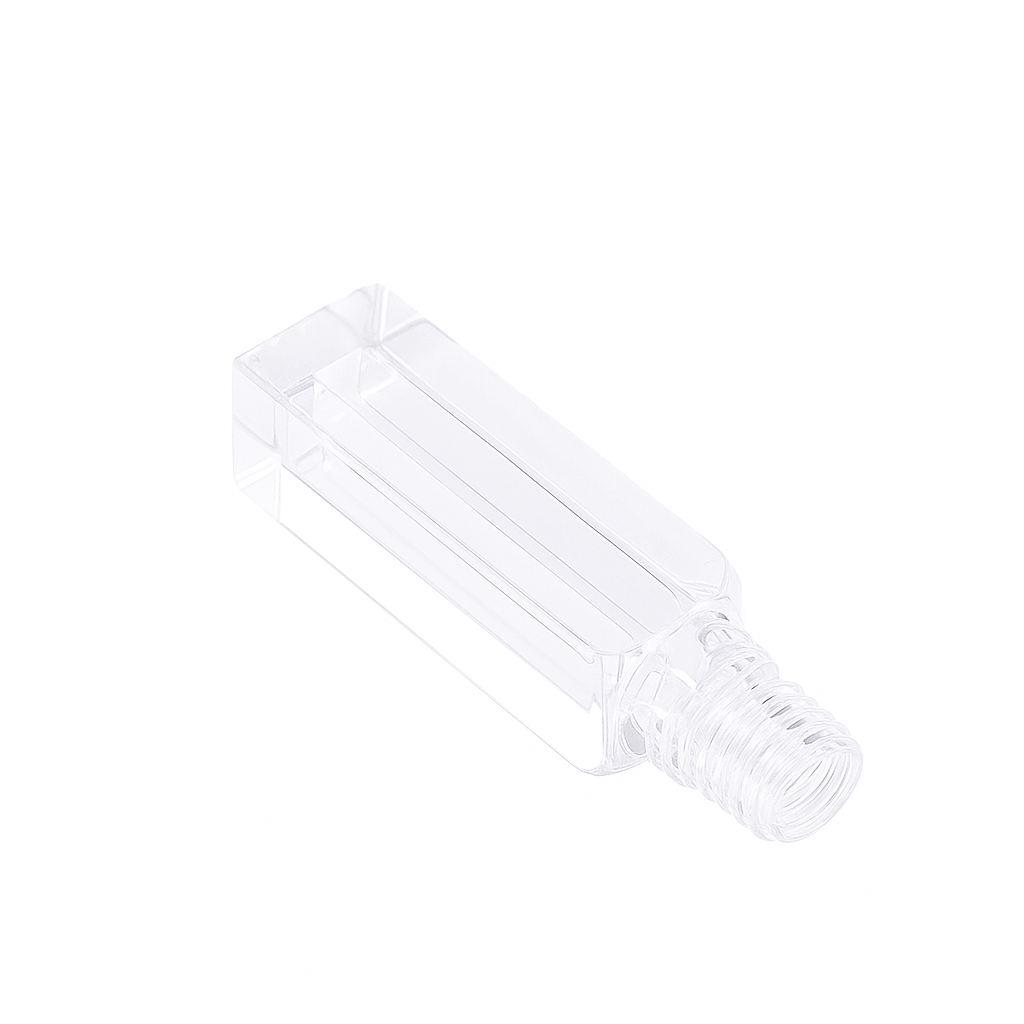

VFSMS5 – Semi-Micro Fluorescence Cuvette (Molded, 5 mm Width, 4 Windows, Screw Cap)

The VFSMS5 cuvette is a precision molded quartz cuvette optimized for fluorescence and absorbance spectroscopy, particularly when moderate to large sample volumes are acceptable.
With a 5 mm internal width and a total sample volume of 1750 μL, it delivers enhanced sensitivity compared to narrower path cuvettes, making it suitable for applications that demand high signal intensity and measurement stability.
The molded fabrication provides superior optical clarity and ±0.01 mm path length tolerance, while the screw cap effectively minimizes evaporation and contamination during measurement.

Key Features

Molded fabrication – highest cuvette quality: excellent optical clarity, surface finish, and dimensional precision.
Ultra-tight path length tolerance: ±0.01 mm, ensuring accurate and reproducible results.
Chemical resistance: compatible with strong acids, strong bases, toluene, acetone, and most strong organic solvents (except HF).
5 mm width: offers stronger signal intensity and higher sensitivity, ideal for many fluorescence applications.
4 optical windows: perfect for right-angle fluorescence detection and excitation-emission measurements.
Screw cap: reduces sample loss, protects against contamination, and ensures better measurement stability.
UV/VIS wavelength range: 190–2500 nm.

Typical Applications

Fluorescence spectroscopy (right-angle detection)
UV/VIS absorbance measurements with higher sensitivity
Pharmaceutical, biochemical, and environmental analysis
Strong acid/base and organic solvent experiments

Cuvette Specifications

Type	Semi Micro Cuvette	Optical Path Length	10 mm
Article No.	VFSMS5	Volume	1750 μL
Measuring Method	Fluorescence Cells	Base Type	Flat
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)

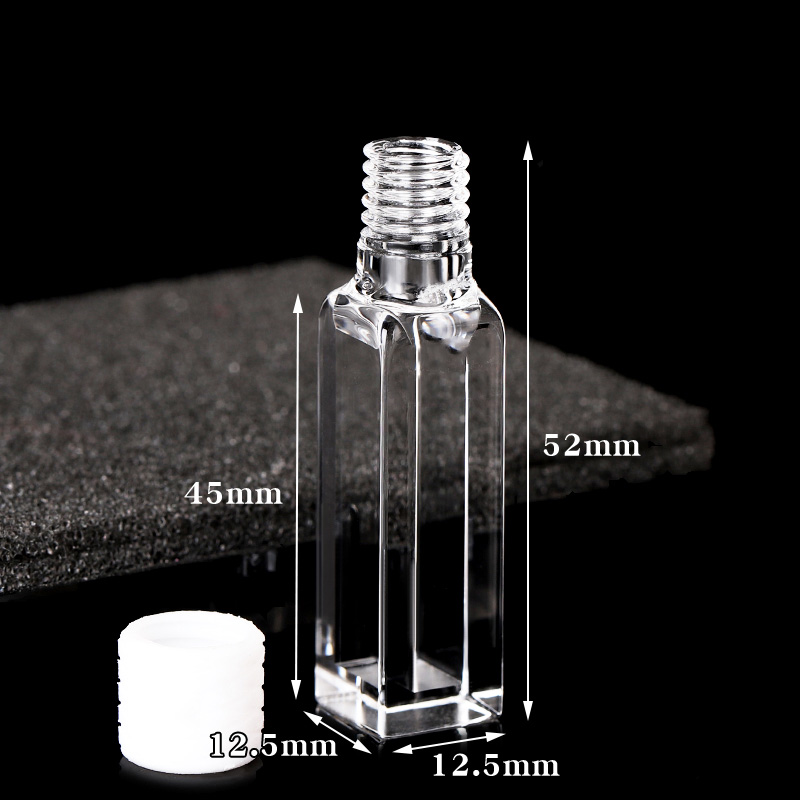

Outside Dimensions
Height	52 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width	5 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Molded*
Package	Cell & Screw Cap

About Molded Fabrication

Molded quartz cuvettes are manufactured using precision molding of ultra-pure quartz, offering:

Superior optical clarity and surface finish
Path length tolerance of ±0.01 mm for highly accurate results
Resistance to strong acids, strong bases, toluene, acetone, and most organic solvents (except HF)
Long service life and excellent chemical stability

Note: Molded quartz cuvettes are ideal for high-sensitivity fluorescence and absorbance spectroscopy, calibration work, and chemically demanding laboratory applications.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
