(VFOF104) Kuweta 110uL Dostosowana, 10x6x6 mm, 4 okna, z bezpiecznikiem, Lightpath 4mm
$84.00 Original price was: $84.00.$72.00Current price is: $72.00.
Ta dostosowana do potrzeb klienta kuweta jest przeznaczona do zastosowań fluorescencyjnych, o długości ścieżki 4 mm. Odporny na większość chemikaliów. Używaj do 600°C. Podana cena dotyczy 1 sztuki .
Description
Dostosowane specyfikacje kuwety Ultra Micro
1 | 2 | 3 | 4 | |||
---|---|---|---|---|---|---|
Type | Custom Cuvette | Optical Path Length | 4 mm | |||
Article No. | VFOF104 | Volume | 110 µl | |||
Measuring Method | Fluorescence Cells | Base Type | Flat | |||
Number of Windows | 4 | Wavelength Range | UV/VIS (190 - 2500 nm) | |||

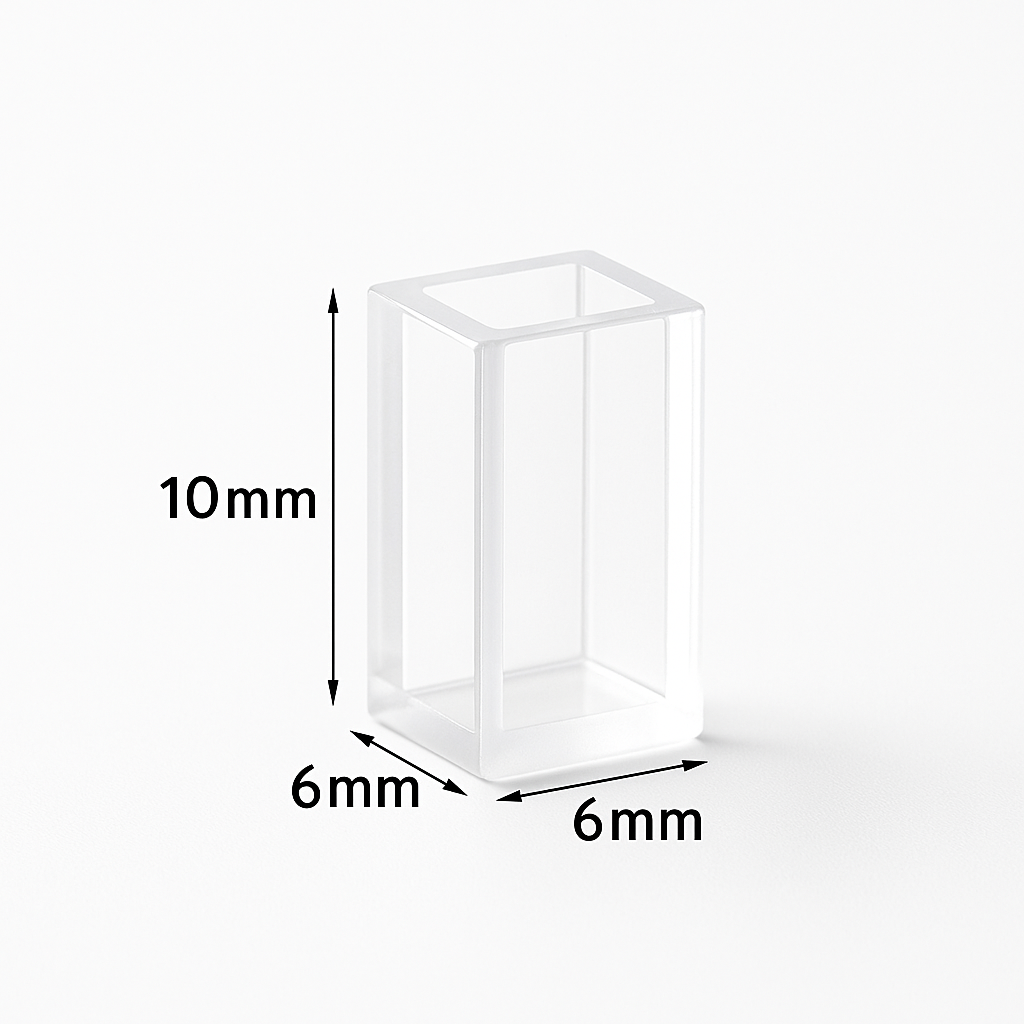

Outside Dimensions | Inside Dimensions | |||||
Height | 10 mm | Width | 4 mm | |||
Width | 6 mm | Depth | 4 mm | |||
Depth | 6 mm | Center Height (Z) | - | |||
Fabrication Method | Fused* | Package | Cell Only |
Porównanie rodzajów produkcji
1 | 2 | 3 | 4 | ||
---|---|---|---|---|---|
*Molded | *Fused | *Bonded / Glued | |||
UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
Transmission Matched | On Request | No | No | ||
Transmission > 80% | Yes | Yes | Yes | ||
Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
Resistant to Organic Solvents | Yes | Yes | No | ||
Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
Usable upto 1200°C (2192°F) | Yes | No | No | ||
0 Variations Reading | On Request | No | No | ||
Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
Adhesives | No | No | Yes | ||
Storage | Short Term Storage | Clean After Use | Clean After Use | ||
Available Material | Fused Quartz Material | ||||
Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. |
