(VFOB120) 120uL Sub Micro Fluorescence Cuvette, All Black, Bonded, 3 Windows

Weight	80 g
Brand	Qvarz
Resistant to Chemicals	No
Z dimension	12 mm

SKU: VFOB120

(VFOB120) 120uL Sub Micro Fluorescence Cuvette, All Black, Bonded, 3 Windows

(VFOB120) 120uL Sub Micro Fluorescence Cuvette, All Black, Bonded, 3 Windows - Image 2

(VFOB120) 120uL Sub Micro Fluorescence Cuvette, All Black, Bonded, 3 Windows - Image 3

$164.00

In Stock

This sub-micro cuvette is for fluorescence applications, with a path length of 10 mm. For Aqueous Samples Only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded, For Aqueous Samples Only

SKU: VFOB120 Categories: All Cuvettes & Cells, Bonded Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Open Top Cuvettes, Products, Sub-Micro Cuvettes Tags: fluorescence cuvette, open top cuvette, sub micro cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFOB120 Sub Micro Fluorescence Cuvette (3-Windows, All Black)

The VFOB120 is a sub-micro volume quartz fluorescence cuvette engineered for high-sensitivity detection with minimal sample consumption.
With a 10 mm optical pathlength and 120 µL sample volume, it is suitable for a wide range of biochemical and analytical fluorescence applications.
The 3-window design supports excitation and emission measurement, while the all-black wall structure minimizes stray light and background interference.

Key Features

120 µL working volume — ideal for sub-micro assays and low concentration samples.
10 mm optical pathlength — compatible with most fluorometers and UV/VIS instruments.
3-window configuration — allows efficient excitation and emission detection for fluorescence applications.
All-black walls — suppress background light and enhance sensitivity.
Bonded fabrication — cost-effective and customizable; suitable for aqueous and mild buffer solutions.
PTFE lid — helps minimize evaporation during long or sensitive measurements.

Typical Applications

Fluorescence spectroscopy
Protein, DNA, RNA quantification
Enzyme kinetics and biochemical assays
Low concentration and trace detection

Bonded Fabrication Notes

Recommended for aqueous and mild buffer solutions.
Not suitable for HF, strong acids/bases, or aggressive organic solvents.
Advantages: low cost, quick delivery, and flexible customization.
Optical path tolerance: ±0.06 – 0.08 mm.
For solvent resistance or harsh conditions, consider fused or molded quartz cuvettes.

Cuvette Specifications

Type	Sub Micro Quartz Fluorescence Cuvette	Optical Path Length	10 mm
Article No.	VFOB120	Volume	120 µL
Measuring Method	Fluorescence Cells	Wall Type	All Black
Number of Windows	3	Wavelength Range	UV/VIS (190 – 2500 nm)

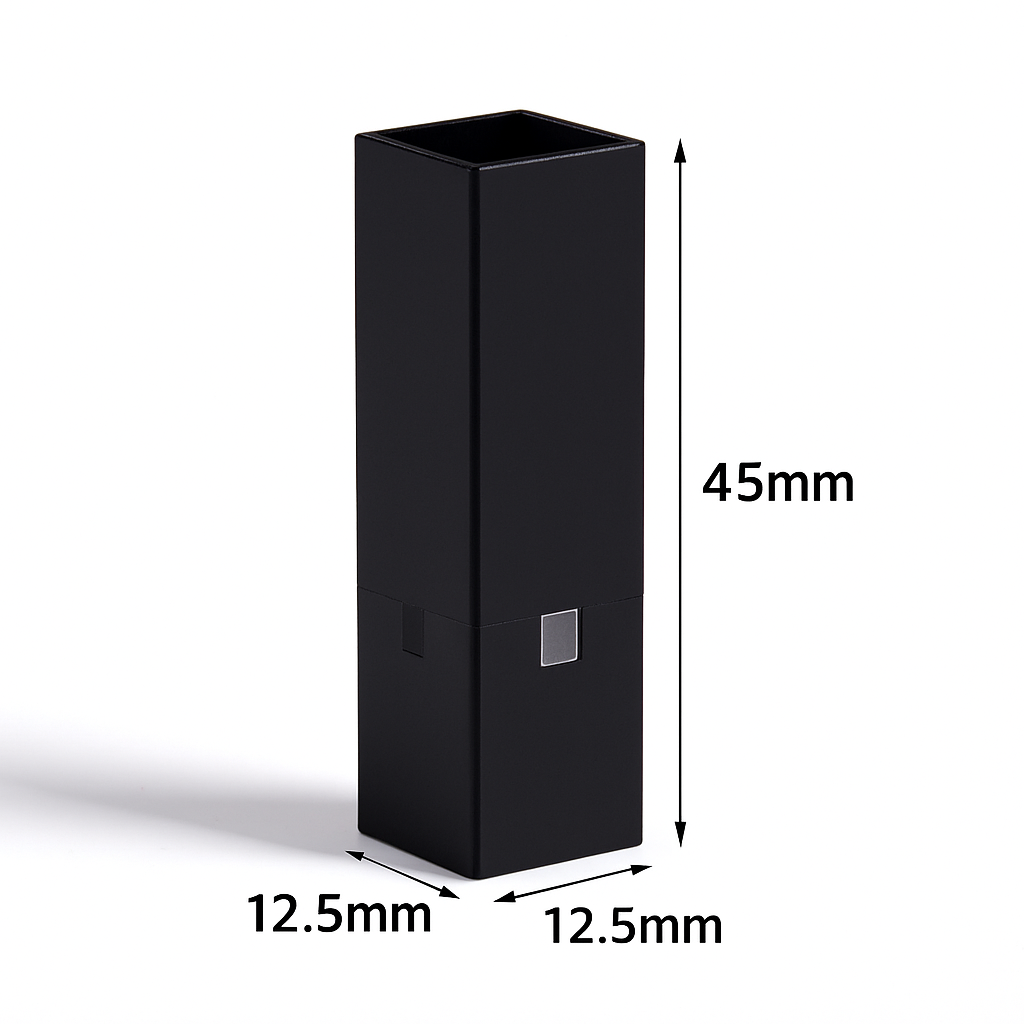

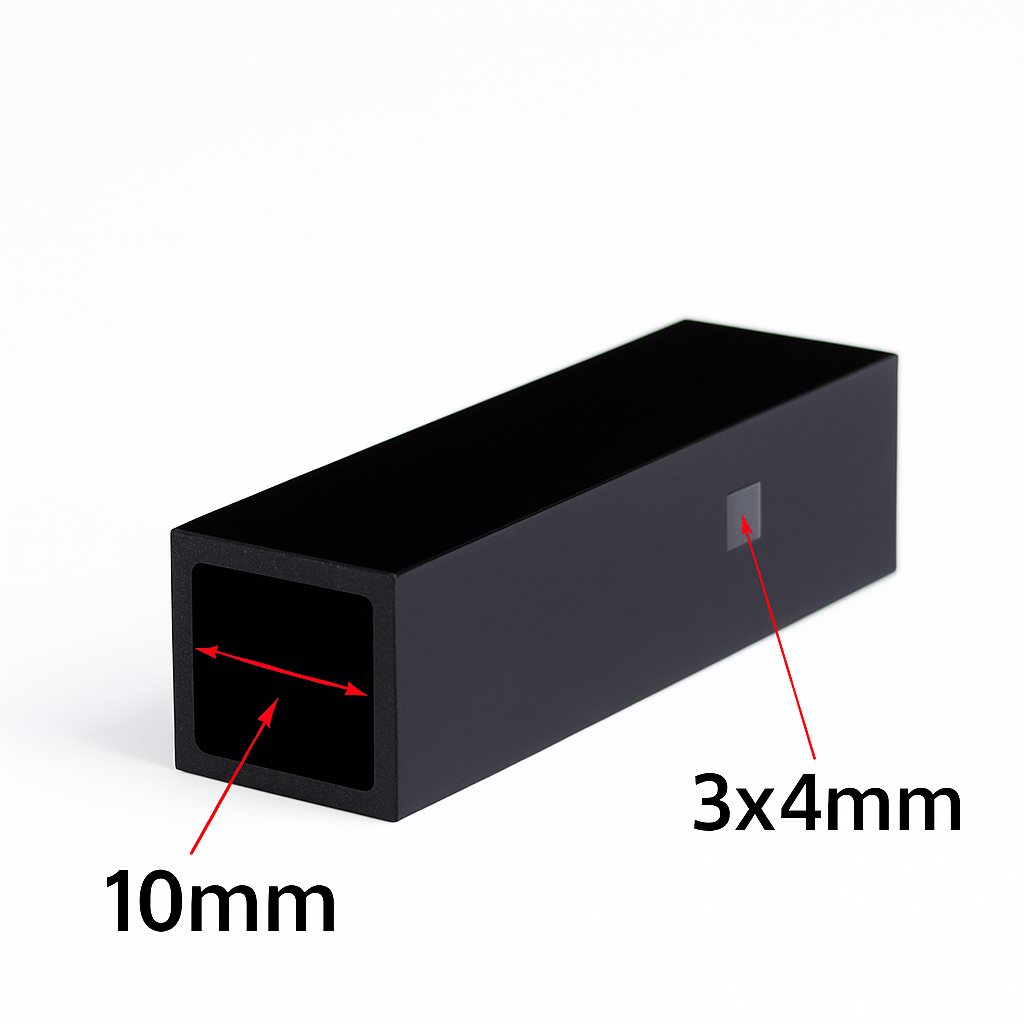

Height (Outside)	45 mm	Aperture Window (Inside)	3 × 4 mm
Width (Outside)	12.5 mm	Depth (Inside)	10 mm

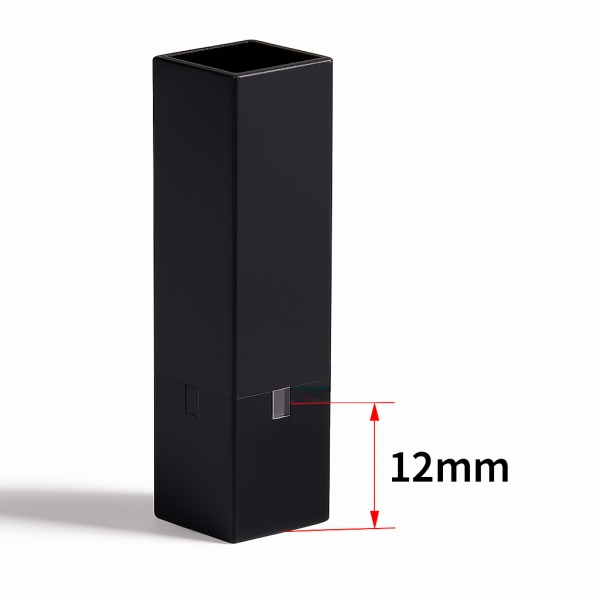

Depth (Outside)	12.5 mm	Center Height (Z)	12 mm
Fabrication Method	Bonded*	Package	Cell & PTFE Lid

Note: VFOB120 is optimized for micro- and sub-micro-volume fluorescence applications, offering excellent sensitivity and low background.
For applications requiring high chemical resistance or long-term durability, fused or molded quartz cuvettes are recommended.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
