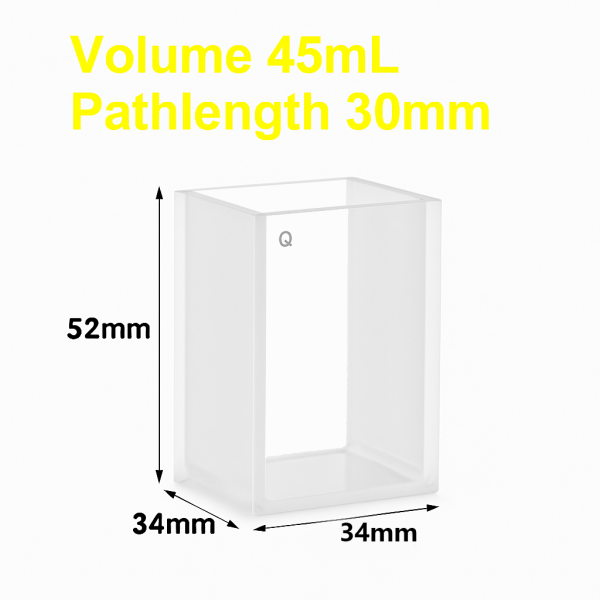

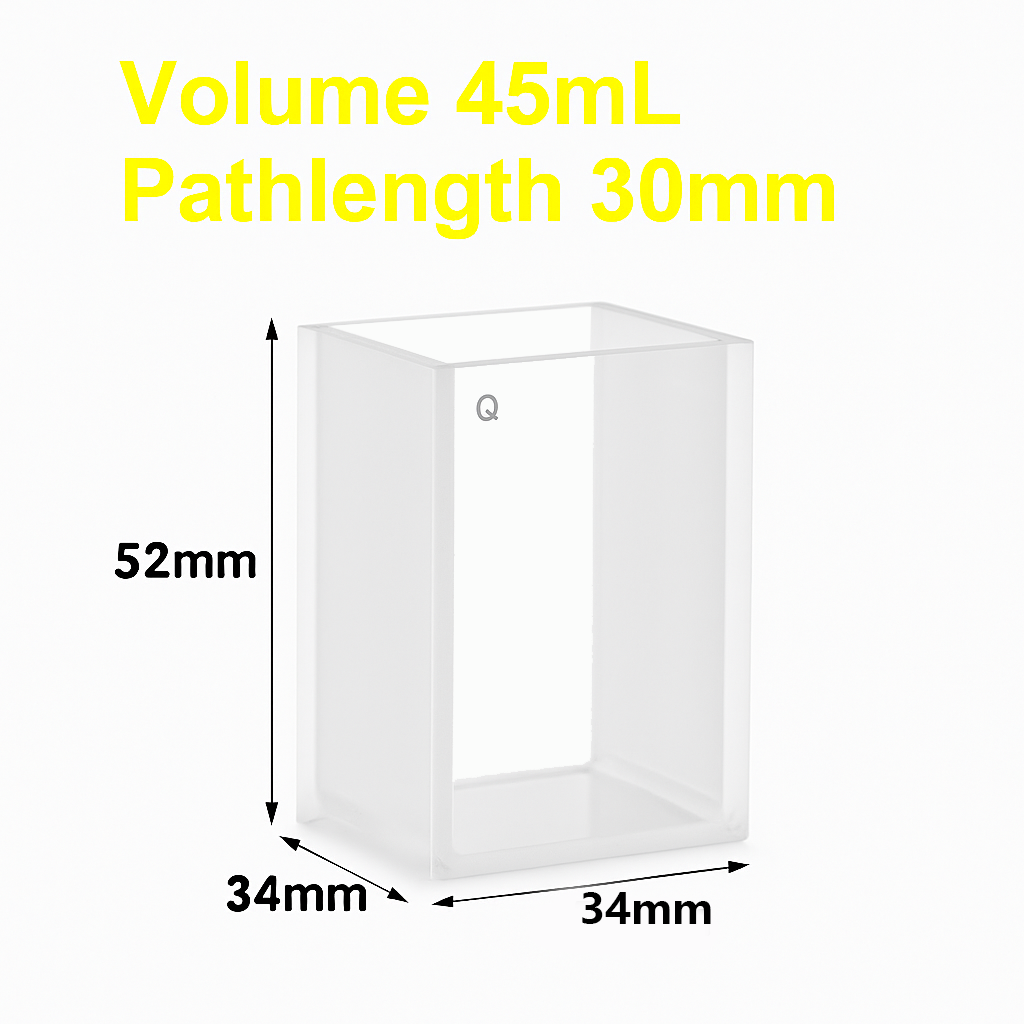

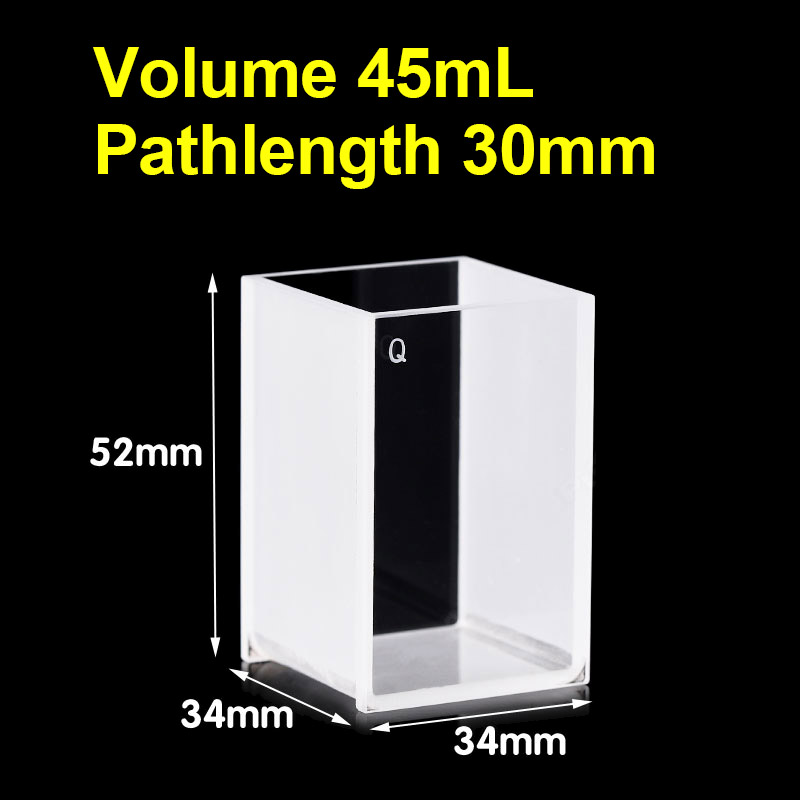

(VAOFM45) 45ml Absorption Cuvette, Fused, Lightpath 30mm, 52x34x34 mm, 2 Clear Windows
$109.00
This wide clear wall cuvette is for absorption applications, with a path length of 30 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOFM45 Fused Quartz Absorption Cuvette is a 2-window cuvette with a 30 mm optical path length and a 45 ml volume.
It features a wide clear wall design, providing extended path length for increased measurement sensitivity in UV/VIS spectroscopy.
Fused fabrication ensures excellent chemical and thermal resistance, making this cuvette ideal for demanding analytical and research applications.
Key Features
- 30 mm optical path length — allows for high sensitivity and trace detection in low-concentration samples.
- 2-window design — optimized for straight-beam UV/VIS absorbance measurements.
- Fused fabrication — excellent thermal resistance (up to 600 °C) and chemical stability in most acidic and basic solutions.
- Wide wall geometry — ensures stable light transmission with low stray light interference.
- Broad wavelength range — 190 – 2500 nm, suitable for UV/VIS and NIR applications.
Typical Applications
- UV/VIS absorbance and transmission spectroscopy.
- Trace analysis of low-concentration analytes.
- Environmental testing and water quality monitoring.
- Protein and nucleic acid quantification at 260/280 nm.
- High-precision research and quality control measurements.
Fused Fabrication Notes
- Fused fabrication provides excellent thermal and chemical resistance.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
- Powder seams may discolor over time but do not affect optical performance.
- Typical path length tolerance is ±0.06 – 0.08 mm.
Cuvette Specifications
| Type | Absorption Quartz Cuvette | Optical Path Length | 30 mm |
| Article No. | VAOFM45 | Volume | 45 ml |
| Measuring Method | Absorption Cells | Clear Walls | 52 × 34 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 52 mm | Width (Inside) | 30 mm |
| Width (Outside) | 34 mm | Depth (Inside) | 30 mm |
| Depth (Outside) | 34 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: Fused fabrication provides excellent durability for high-sensitivity UV/VIS spectroscopy.
Avoid use with HF or strong organic solvents. Powder seams may discolor but do not affect measurement accuracy.
The 30 mm path length allows for enhanced sensitivity in trace detection applications.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
