(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows

Weight	120 g
Brand	Qvarz
Resistant to Chemicals	No

SKU: VAOBM4

(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows

(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows - Image 2

(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows - Image 3

(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows - Image 4

(VAOBM4) 1.4mL Semi-Micro Cuvette, PTFE Lid, Bonded, Width 4mm, 2 Windows - Image 5

~~$31.00~~ Original price was: $31.00.$28.00Current price is: $28.00.

In Stock

This semi micro volume cuvette is for absorption applications, with a path length of 10 mm. For Aqueous Samples Only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded, For Aqueous Samples Only

SKU: VAOBM4 Categories: Semi Micro Cuvettes, All Cuvettes & Cells, Bonded Cuvettes, Cuvettes & Flow Cells, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Open Top Cuvettes, Products, Spectrometer Cuvettes Tags: narrow width cuvette, open top cuvette, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

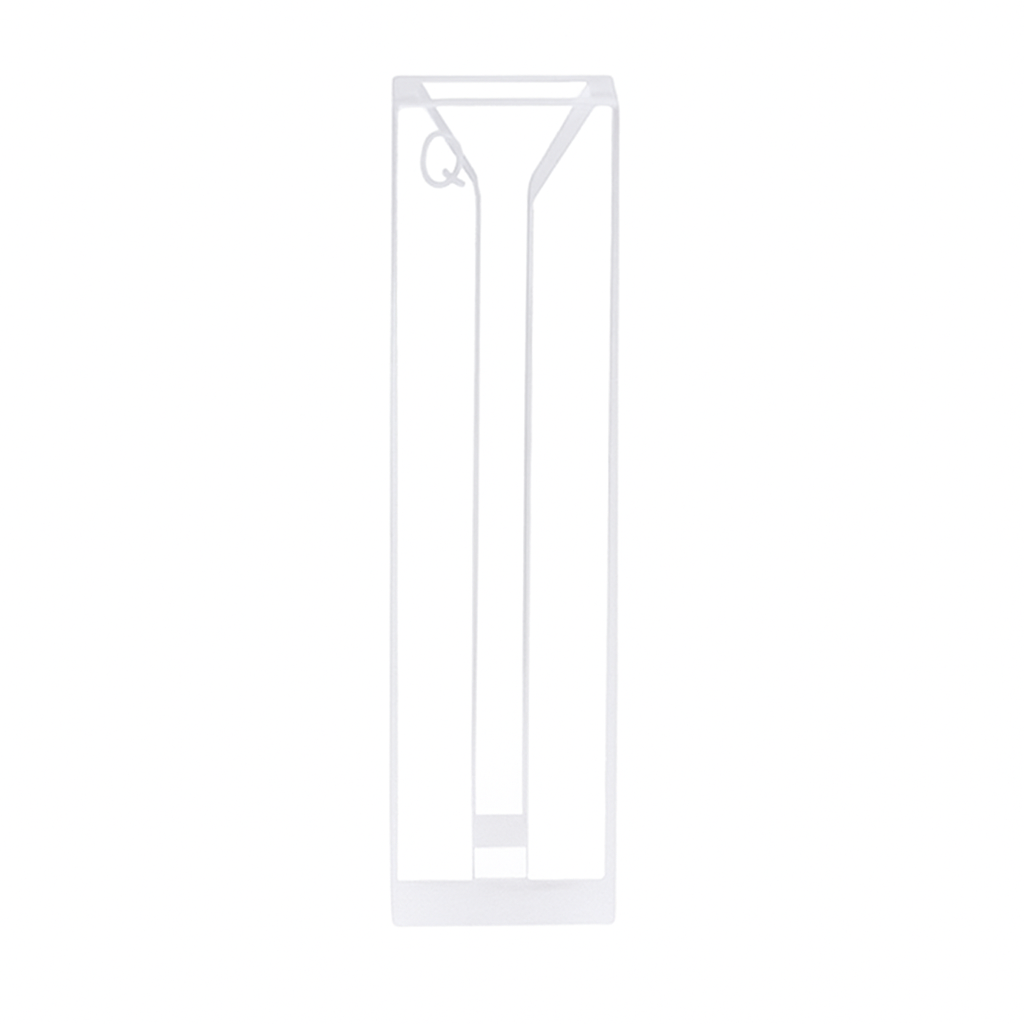

VAOBM4 – 1.4 mL Semi-Micro Quartz Cuvette (Bonded, 4 mm Width, 2 Windows, PTFE Lid)

The VAOBM4 is a dependable bonded quartz cuvette designed for UV/VIS absorption spectroscopy.
With a 4 mm internal width and a 10 mm optical path length, it is ideal for medium-volume measurements, offering stable and accurate transmission results.
Bonded fabrication provides good optical clarity and cost efficiency, making this cuvette well suited for routine laboratory applications.

Key Features

Sample volume: 1.4 mL (1400 µL) — suitable for semi-micro and standard absorbance experiments.
4 mm internal width: provides stable readings and moderate sample consumption.
10 mm optical path length: standard size compatible with most spectrophotometers.
2 optical windows: optimized for clear and accurate absorption measurements.
Bonded fabrication: ±0.06–0.08 mm path length tolerance, ideal for routine analytical use.
Chemical resistance: suitable for aqueous solutions and mild solvents (not compatible with HF or strong organics).
Wavelength range: UV/VIS (190–2500 nm).

Typical Applications

UV/VIS absorption spectroscopy
Protein and nucleic acid quantification
Biochemical and pharmaceutical analysis
General laboratory measurements

Cuvette Specifications

Type	Semi Micro Cuvette	Optical Path Length	10 mm
Article No.	VAOBM4	Volume	1400 µL
Measuring Method	Absorption Cells	Base Type	Flat
Number of Windows	2	Wavelength Range	UV/VIS (190–2500 nm)
Outside Dimensions
Height	45 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width (Inside)	4 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5–20 mm	Fabrication Method	Bonded*
Package	Cell & PTFE Lid

About Bonded Fabrication

Bonded quartz cuvettes are assembled using precision-ground quartz plates and provide:

Good optical quality at a lower cost compared to molded or fused types.
Path length tolerance of ±0.06–0.08 mm.
Resistance to most aqueous solutions and mild solvents (avoid HF, toluene, acetone, and strong organic solvents).

Usage Notes

Ideal for routine UV/VIS absorption spectroscopy.
Best used with standard laboratory solutions and buffers.
Avoid long-term exposure to aggressive organic solvents.

Note: Bonded quartz cuvettes combine reliable optical performance with cost efficiency, making them a popular choice for everyday analytical applications.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
