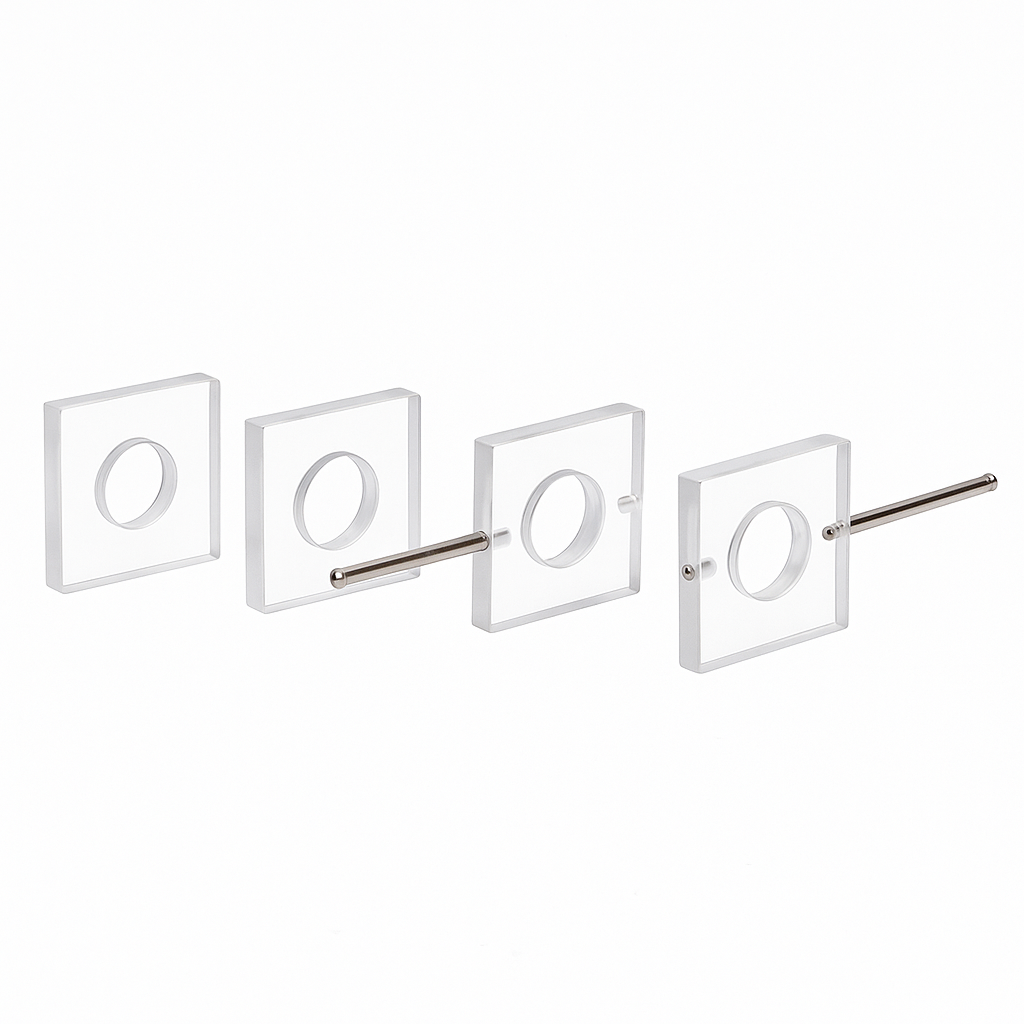

(VNE047) 150μL Flow Chamber Cell, Chamber Size: ø10x2mm, Outer Size: 20x20x3 mm, with Connectors
$211.00
This flow-through cuvette is for flow cytometry applications, with a path length of 2 mm. For aqueous samples only. Use up to 100°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For Aqueous Samples Only
Description
VNE047 – 150 μL Flow Chamber with 2 mm Optical Path (Bonded, 2 Windows)
The VNE047 flow cell is a precision bonded quartz flow chamber designed for cell counting and flow cytometry applications.
With a 2 mm optical path length and 150 μL internal volume, this compact chamber is ideal for low-volume, high-precision optical detection.
Its bonded structure ensures tight sealing and compatibility with UV/Vis measurements across a broad spectral range.
Key Features
- 📏 2 mm optical path length suitable for sensitive detection and cell counting.
- 💧 150 μL chamber volume, ideal for low sample consumption.
- 🌈 High-purity quartz with broad UV/Vis transmission from 190 to 2500 nm.
- 🧪 Bonded construction provides strong sealing and durability for continuous flow.
- 🔬 Optimized for flow cytometry and particle detection systems.
Flow Cell Specifications
| Type | Flow Cell | Optical Path Length | 2 mm |
| Article No. | VNE047 | Application | Cell Counting, Flow Cytometry |
| Measuring Method | Absorption Cells | Volume | 150 μL |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |

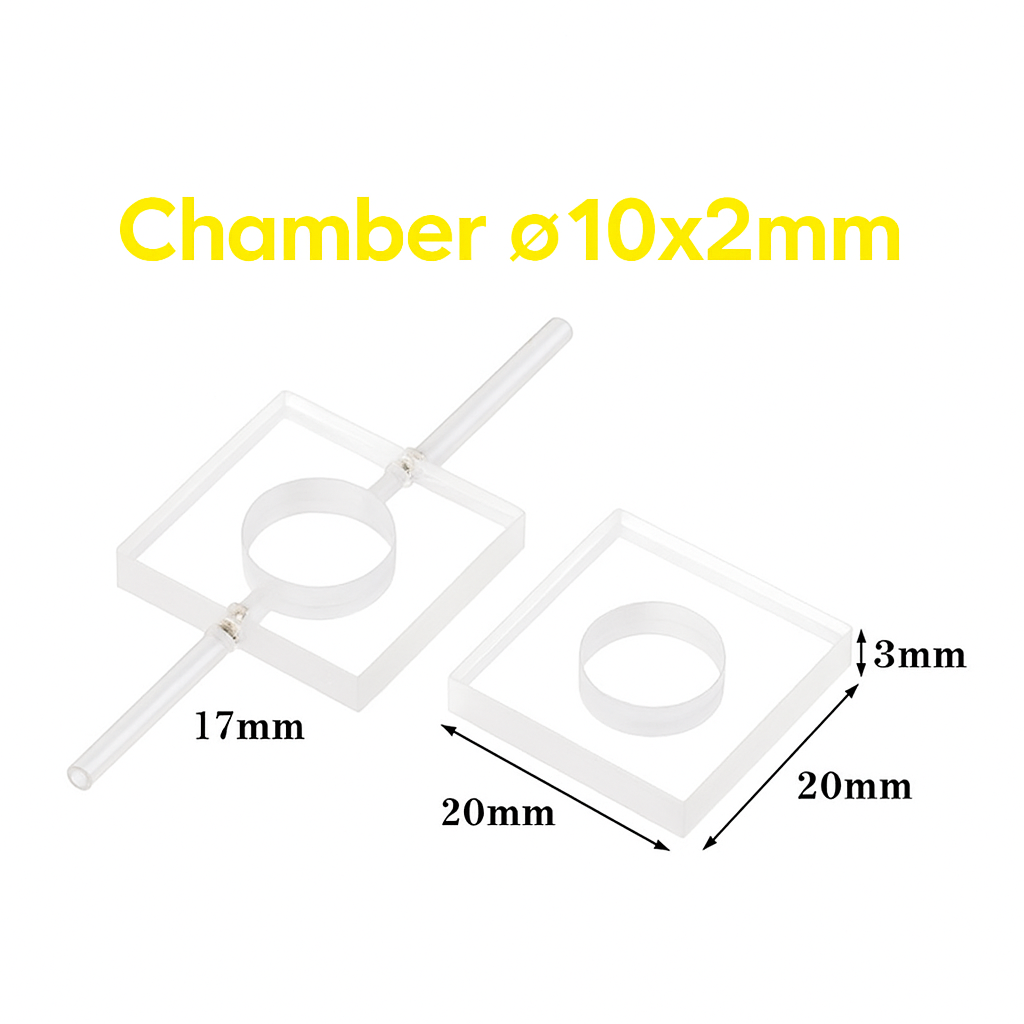

| Outside Dimensions | |||
| Length | 20 mm | Depth | 20 mm |
| Tube | 17 mm | ||
| Fabrication Method | Bonded* | ||
Applications
- Flow cytometry
- Cell counting and particle analysis
- Low-volume UV/Vis absorption measurements
- Inline detection in biological and chemical systems
Note: The compact design and short optical path length make this flow cell ideal for high-precision analysis with minimal sample volumes.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
