(VLMD01) 30 μL Ultra Micro Detachable Cuvette, Lightpath 0.1mm, 2 Windows, Molded

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VLMD01

17%Custom

(VLMD01) 30 μL Ultra Micro Detachable Cuvette, Lightpath 0.1mm, 2 Windows, Molded

(VLMD01) 30 μL Ultra Micro Detachable Cuvette, Lightpath 0.1mm, 2 Windows, Molded - Image 2

(VLMD01) 30 μL Ultra Micro Detachable Cuvette, Lightpath 0.1mm, 2 Windows, Molded - Image 3

~~$345.00~~ Original price was: $345.00.$288.00Current price is: $288.00.

In Stock

This flow-through cuvette is for absorption applications, with a path length of 0.1 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VLMD01 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Detachable Cuvettes, Micro Cuvettes <3.5mL, Molded Cuvettes, Products, Short Path Length Cuvettes, Spectrometer Cuvettes Tags: custom cuvette, detachable cell, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VLMD01 Ultra Micro Detachable Cuvette is a high-precision quartz cuvette specifically designed for ultra-short path length measurements. With an optical path of 0.1 mm and a required volume of only 30 μL, it is ideal for high-concentration sample analysis in UV/VIS absorbance spectroscopy (190 – 2500 nm).

The detachable structure allows for easy cleaning and reusability, while the molded fabrication ensures excellent optical clarity, fast production, and cost efficiency.

Typical Applications

High-concentration sample absorbance measurement
UV/VIS spectroscopy with ultra-short path length
Small or precious volume sample testing
Biochemical and analytical research
OEM and customized instrument integration

Key Features

0.1 mm optical path for ultra-short path applications
30 μL sample volume minimizes sample use
Detachable construction for cleaning and reusability
Molded fabrication for high consistency and cost-efficiency
UV/VIS transmission: 190 – 2500 nm

Technical Specifications

Type	Flow Cell	Optical Path Length	0.1 mm
Article No.	VLMD01	Volume	30 μL
Measuring Method	Absorption Cells	Connector	Quartz
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)

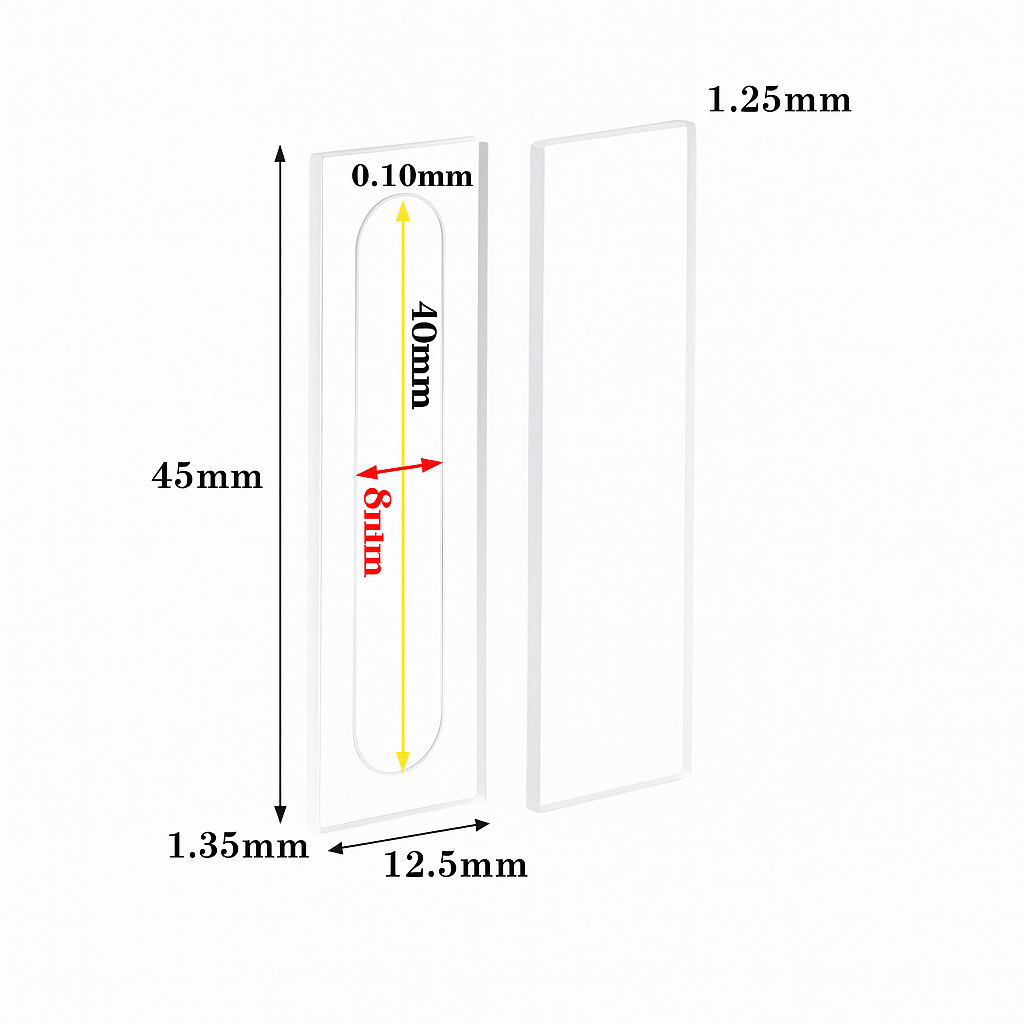

Outside Dimensions	Length: 45 mm Width: 12.5 mm Depth: 1.35 + 1.25 mm	Inside Dimensions	Length: 40 mm Width: 8 mm Depth: 0.1 mm
Fabrication Method	Molded*	Package	Cell & Cover

Note: Detachable structure provides convenience for cleaning and reuse. Molded fabrication ensures excellent optical clarity, short lead time, and competitive cost.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
