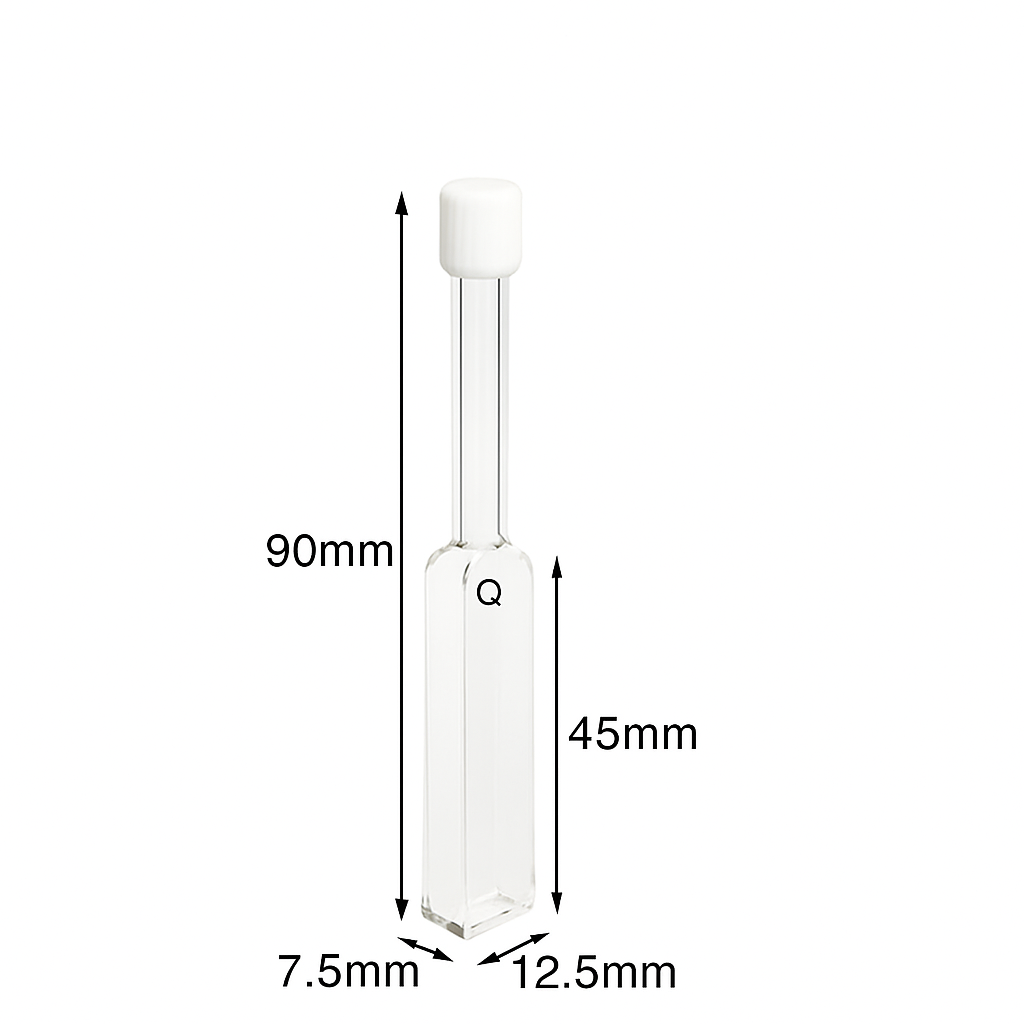

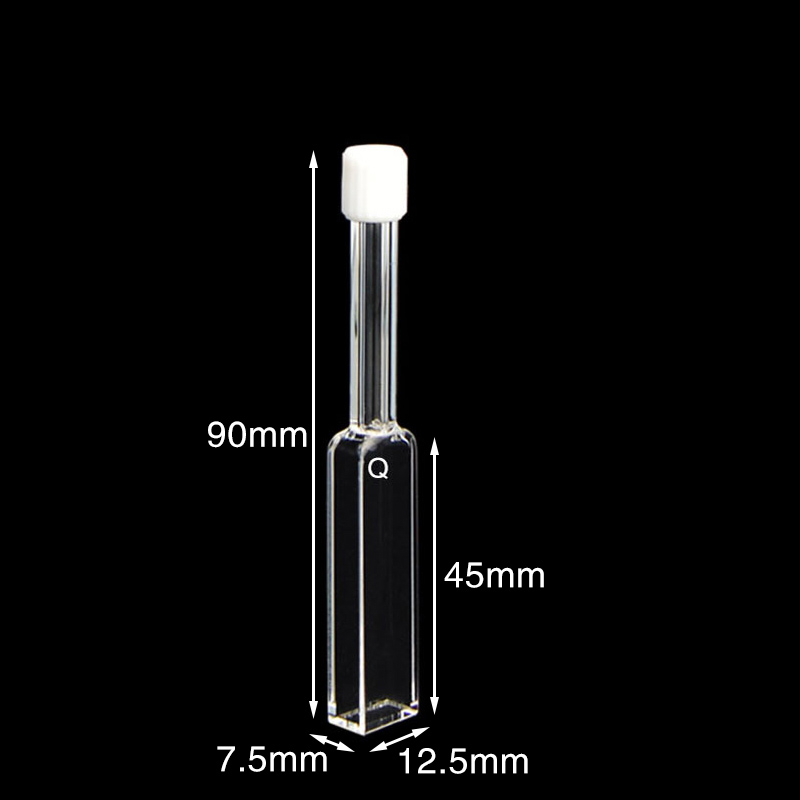

(VFSM05) 1,75 mL Κυψέλη με σωλήνα χαλαζία και βιδωτό καπάκι, σωλήνας 7 mm, Ύψος 90 mm, 4 παράθυρα, διαδρομή φωτός 5 mm

Weight	200 g
Brand	Qvarz
Resistant to Chemicals	Ναί

SKU: VFSM05

(VFSM05) 1,75 mL Κυψέλη με σωλήνα χαλαζία και βιδωτό καπάκι, σωλήνας 7 mm, Ύψος 90 mm, 4 παράθυρα, διαδρομή φωτός 5 mm

(VFSM05) 1,75 mL Κυψέλη με σωλήνα χαλαζία και βιδωτό καπάκι, σωλήνας 7 mm, Ύψος 90 mm, 4 παράθυρα, διαδρομή φωτός 5 mm - Image 2

~~$619.00~~ Original price was: $619.00.$576.00Current price is: $576.00.

In Stock

Αυτή η κυψελίδα με μακρύ σωλήνα προορίζεται για εφαρμογές φθορισμού, με μήκος διαδρομής 5 mm. Ανθεκτικό στα χημικά. Χρήση έως 1200°C. Η τιμή είναι για 1 τεμάχιο .

In Stock

SKU: VFSM05 Categories: Micro Cuvettes< 3,5 ml, Άλλες κυβέτες, Κουβέτες με βιδωτό καπάκι, Κυβέτες & Κυψέλες ροής, Όλες οι κυβέτες και τα κύτταρα, Προϊόντα, Προσαρμοσμένες κυβέτες, Φθορομετρικές κυβέτες, Χυτές κυβέτες Tags: κυβέτα με σωλήνα, κυψελίδα με βιδωτό καπάκι, κυψελίδα φθορισμού

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $1800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 1 - 2 weeks.

Description

1

Προδιαγραφές κυβετών

1	2	3	4
Type	Cuvette with Tube	Optical Path Length	5 mm
Article No.	VFSM05	Volume	1.75 ml
Measuring Method	Fluorescence Cells	Tube	OD 7mm, ID 5mm
Number of Windows	4	Wavelength Range	UV/VIS (190 - 2500 nm)

Outside Dimensions		Inside Dimensions
Height	90 mm	Width	10 mm
Width	12.5 mm	Depth	5 mm
Depth	7.5 mm	Overall Height	90 mm
Fabrication Method	Molded*	Package	Cell & Screw Cap

1

Σύγκριση τύπων κατασκευής

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ^® Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ^® Cuvettes and Cells? QVARZ^® is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ^® cuvette is manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ^® spectrophotometry cuvettes. Our cuvettes made of fused qvartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ^® cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorimetry cuvettes - QVARZ^® brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorimetry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ^® cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ^® Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
