(VCPFTR) 1.75 mL Triangular Cuvette, Stopper, 3 Windows, Fused, Lightpath 10mm, 45x18x13 mm

Weight 100 g
Brand

Resistant to Chemicals

SKU: VCPFTR

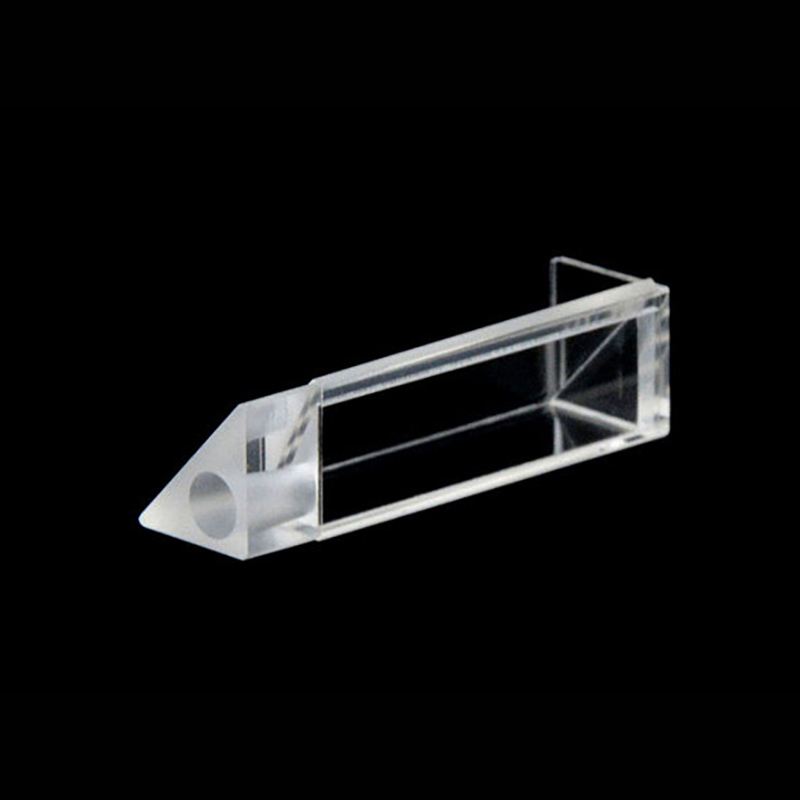

(VCPFTR) 1.75 mL Triangular Cuvette, Stopper, 3 Windows, Fused, Lightpath 10mm, 45x18x13 mm
(VCPFTR) 1.75 mL Triangular Cuvette, Stopper, 3 Windows, Fused, Lightpath 10mm, 45x18x13 mm - Image 2
(VCPFTR) 1.75 mL Triangular Cuvette, Stopper, 3 Windows, Fused, Lightpath 10mm, 45x18x13 mm - Image 3
(VCPFTR) 1.75 mL Triangular Cuvette, Stopper, 3 Windows, Fused, Lightpath 10mm, 45x18x13 mm - Image 4

$299.00

In Stock

This triangular fluorescence cuvette is for use in front-face illumination experiments. These are helpful for measurements with dense samples that have high densities. Resistant to most chemicals. Use up to 600°C.  The price is for 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
  • Type: Fused
SKU: VCPFTR Categories: , , , , , , , , Tags: , ,
Worldwide Timed Dispatch Available
  • Free Shipping apply to all orders over $800
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VCPFTR Triangular Quartz Cuvette with Stopper is a precision fused quartz cuvette designed for high-sensitivity fluorescence and UV/Vis applications. Its triangular body (45 × 18 × 13 mm) and 90° geometry effectively minimize stray light and internal reflections, delivering enhanced signal-to-noise ratios in fluorescence measurements.

With a 10 mm optical path length and a 1.75 mL chamber volume, this cuvette is well suited for standard fluorometers, right-angle detection configurations, and low-to-medium volume samples. The included PTFE stopper helps seal the chamber to reduce evaporation and contamination, ensuring consistent measurement conditions.

Key Advantages

  • ✔ Triangular cross-section — reduces reflection and scattering, improving fluorescence detection sensitivity.
  • ✔ Four optical windows — allows flexible detection geometry, including right-angle signal collection.
  • ✔ Fused fabrication — excellent thermal stability, good chemical resistance, and stable optical performance.
  • ✔ Secure sealing — supplied with PTFE stopper for contamination and evaporation control.
  • ✔ Compact volume — ideal for fluorescence, absorbance, and kinetic assays with limited samples.

Typical Applications

  • Fluorescence spectroscopy with 90° detection
  • UV/Vis absorbance measurements
  • Protein and nucleic acid quantification
  • Dye studies, photoluminescence, and kinetic monitoring

Fused Fabrication Characteristics

  • Can be heated up to 600 °C (1112 °F).
  • Assembled with quartz powder; small gaps may absorb dyes or stains — not recommended for long-term sample storage.
  • Not suitable for HF, toluene, acetone, or aggressive organic solvents (these will shorten the service life significantly).
  • Excellent optical transmission across the UV/VIS range with reliable durability.

Cuvette Specifications

Type 1.75 ml Cuvette Optical Path Length 10 mm
Article No. VCPFTR Volume 1.75 ml
Measuring Method Fluorescence Cells Clear Walls 45 × 18 mm, 45 × 13 mm
Number of Windows 4 Wavelength Range UV/VIS (190 – 2500 nm)
Height 45 mm Angle 90°
Width 18 mm Depth 10 mm
Angle Side 13 mm Center Height (Z) 8.5 – 20 mm
Fabrication Method Fused* Package Cell & Stopper

Note: Fused quartz cuvettes are highly durable but not suitable for HF, toluene, acetone, or aggressive organic solvents. Clean promptly after use to maintain optical performance and prolong service life.

Comparison of Fabrication Types

1234
*Molded*Fused*Bonded / Glued
UV vis ( 190- 2500 nm)YesYesYes
Transmission Matched On RequestNoNo
Transmission > 80%YesYesYes
Resistant to Acids and Bases (except hydrofluoric acid)YesYesNo
Resistant to Organic SolventsYesYesNo
Usable upto 600°C (1112°F)YesYesYes
Usable upto 1200°C (2192°F)YesNoNo
0 Variations ReadingOn RequestNoNo
FabricationMoldedAssembled with Quartz PowderAssembled with Glue
AdhesivesNoNoYes
StorageShort Term StorageClean After UseClean After Use
Available MaterialFused Quartz Material
NoteMolded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.



1

QVARZ Cuvettes Transmission Characteristics

    The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.
Fused UV vis Cuvettes Transmission
Why QVARZ Cuvettes and Cells?

QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
  • Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths.

  • Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements.

  • Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants.

  • Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings.

  • Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient.

  • Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
