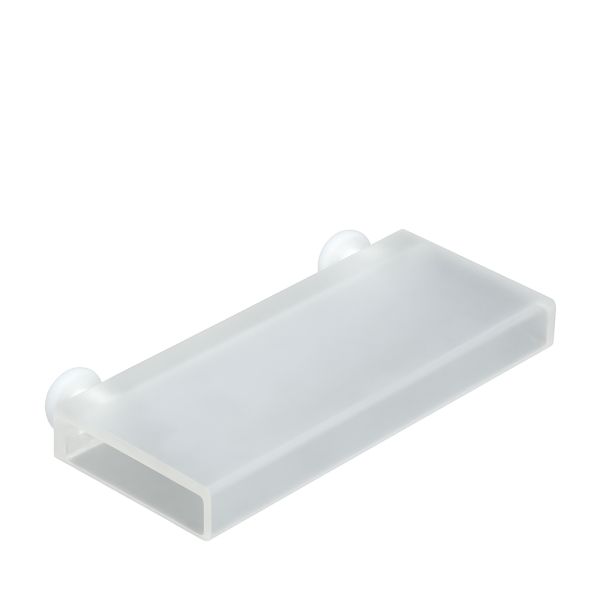

(VAPF100) 35mL Standard Absorption Cuvette with 2 PTFE Stopper, Fused, Lightpath 100mm
$310.00
This airtight stopper cuvette is for absorption applications, with a path length of 100 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAPF100 Long Pathlength Quartz Cuvette with Stopper is a high-sensitivity cuvette featuring a 100 mm optical path length and PTFE stopper sealing.
The extended path length enhances absorbance detection sensitivity, making it ideal for trace and low-concentration measurements in UV/VIS spectrophotometry.
Key Features
- 100 mm long pathlength — improves signal intensity and detection sensitivity for ultra-low concentration samples.
- PTFE stopper design — allows secure sealing, reducing evaporation and contamination during long measurements.
- Fused quartz construction — excellent optical transmission in the UV/VIS range (190–2500 nm) and stable chemical resistance (except HF and certain strong organic solvents).
- Precise dimensional control ensures high measurement repeatability.
- Compatible with most standard UV/VIS spectrophotometers.
Typical Applications
- Trace pollutant and contaminant analysis
- Environmental and water testing
- Low concentration UV/VIS absorption assays
- Biochemical and pharmaceutical analysis
Fused Fabrication Notes
- Can withstand temperatures up to 600 °C.
- Not suitable for hydrofluoric acid (HF).
- Typical dimensional tolerance: ±0.06–0.08 mm.
Cuvette Specifications
| Type | 100 mm Stopper Quartz Cuvette | Optical Path Length | 100 mm |
| Article No. | VAPF100 | Volume | 35 ml |
| Measuring Method | Absorption Cells | Cap Type | PTFE Stopper |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 45 mm | Width (Inside) | 10 mm |
| Width (Outside) | 12.5 mm | Depth (Inside) | 100 mm |
| Depth (Outside) | 102.5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell & Stopper |
Note: VAPF100 is a fused quartz cuvette with a 100 mm pathlength and PTFE stopper — an excellent choice for trace-level absorption measurements with high sensitivity and minimal sample loss.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
