Flow Through Cuvettes: An Exploration of Functionality, Application, and Advancements

I. Introduction

A. Brief Overview of Flow-through Cuvettes

Flow-through cuvettes, as their name suggests, are a special type of cuvette that allows for a continuous flow of the sample material. This is a significant step away from the conventional ‘fill-and-read’ cuvettes that dominated the field of spectrophotometry. These innovative cuvettes are designed to hold a sample solution in a way that facilitates real-time analysis, making them ideal for observing changes in a sample over a period of time.

B. Importance of Flow-through Cuvettes

Flow-through cuvettes have become integral in a wide array of fields, ranging from medical and biological research to industrial applications such as quality control. The primary advantage of using a flow-through cuvette is the ability to carry out continual analysis. This can significantly reduce the manual work involved in repeated testing and also minimize the risk of sample contamination.

II. Design and Operation

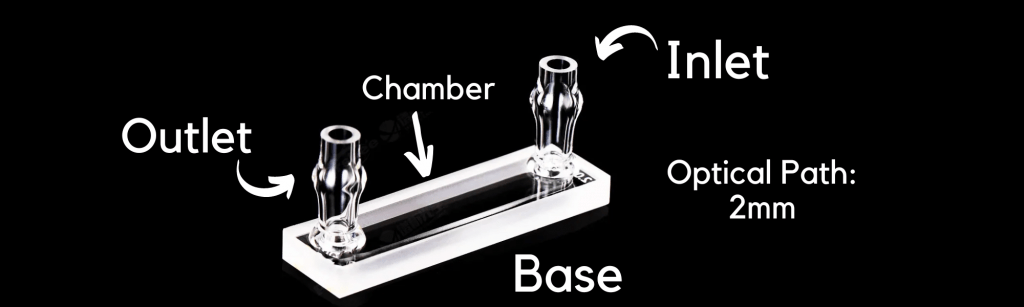

A. Basic Structure of a Flow-through Cuvette

The basic structure of a flow-through cuvette typically involves a clear container designed to hold liquids and allow light to pass through. The cuvette is characterized by a few critical components:

1. Inlet and Outlet Ports: These are the primary distinguishing features of a flow-through cuvette compared to traditional cuvettes. The inlet port allows the sample to be introduced into the cuvette, while the outlet port allows it to exit. These ports facilitate the continuous flow of the sample, which is vital for real-time analysis.
2. Sample Chamber: The sample chamber is the main body of the cuvette where the sample is held for analysis. It is made of a material (like glass or quartz) that doesn’t interfere with the passage of light used in spectrophotometric analysis.
3. Optical Path: This is the section of the cuvette that the light travels through during analysis. The length of the optical path can influence the resolution of the analysis, with longer paths providing higher resolution.
4. Base: This is typically a flat surface that allows the cuvette to be placed stably in the spectrophotometer or other analytical instrument.

It’s worth noting that the specific structure of a flow-through cuvette can vary based on its intended use and the nature of the analysis to be carried out. Some flow-through cuvettes may also include additional components like temperature controls or pressure resistance for specialized applications.

B. Working Principle of a Flow-through Cuvette

The sample is typically introduced into the cuvette through the inlet by a pump system. The sample then fills the cuvette chamber and exits via the outlet. This enables an uninterrupted flow of the sample which, when combined with a spectrophotometer, provides a real-time analysis of the sample’s spectral properties as it changes over time.

The working principle of a flow-through cuvette is centered around the fundamental concept of spectrophotometry – the measurement of how much a chemical substance absorbs or transmits light at different wavelengths. In a flow-through cuvette, however, the key distinction lies in the continuous movement of sample material through the cuvette, enabling real-time or continuous analysis of the sample.

1. Sample Introduction: Initially, the sample solution is introduced into the cuvette through the inlet port. This is often facilitated by an external pump or gravity, depending on the specific setup.
2. Sample Flow: Once inside the cuvette, the sample flows through the cuvette’s optical path. This flow can be precisely controlled to maintain a consistent sample volume within the cuvette at any given time, allowing for steady-state measurements.
3. Light Interaction: As the sample flows through the cuvette, it is exposed to a light source. The light passes through the sample, and the amount of light absorbed or transmitted by the sample is detected by a sensor on the other side.
4. Measurement and Data Collection: The detector then translates this light information into an electrical signal, which is processed by the spectrophotometer’s system to produce absorbance or transmittance data. Because the sample is continually flowing through the cuvette, these measurements can be taken at various time points, allowing for real-time or dynamic analysis of the sample.
5. Sample Discharge: After the sample passes through the optical path and the measurements are taken, it exits the cuvette through the outlet port. The sample can then be discarded, or in some cases, collected for further analysis.

This continuous flow and analysis process makes flow-through cuvettes especially useful for monitoring changes in a sample over time, performing kinetic studies, or when the sample volume is large or limited.

III. Materials Used

A. Common Materials and Their Selection

Flow-through cuvettes are typically constructed from materials with high optical quality, such as glass and quartz. The choice of material is determined by the specific requirements of the experiment, including the desired spectral range, the chemical compatibility of the sample with the cuvette material, and the durability required for the experiment.

B. Advantages and Limitations of Different Materials

Quartz cuvettes offer a broader spectral range and better thermal stability compared to glass cuvettes. They are, however, more costly. Glass cuvettes, while being less expensive, have a narrower spectral range and may not be suitable for certain UV range applications due to potential absorption and scattering.

The choice between quartz and glass as the material for flow-through cuvettes depends on the specific requirements of the spectrophotometric experiment. Both materials have distinct advantages and limitations that can influence the experiment’s outcome.

Quartz Cuvettes:

1. Advantages:
   • Broad Wavelength Range: Quartz cuvettes offer superior transmittance over a wide range of wavelengths, from the ultraviolet (UV) to the infrared (IR) spectrum. This allows for highly sensitive and precise measurements across this entire range.
   • High Durability: Quartz cuvettes are more resistant to chemical reactions and can withstand harsh chemicals, making them suitable for experiments involving reactive substances.
   • High Temperature Resistance: Quartz cuvettes can withstand higher temperatures compared to glass, which is beneficial for experiments that require temperature control.
2. Limitations:
   • Cost: The primary limitation of quartz cuvettes is their high cost compared to glass cuvettes. This may limit their use in budget-constrained settings.
   • Handling Care: Quartz cuvettes are more fragile than glass cuvettes, necessitating careful handling to avoid breakage.

Glass Cuvettes:

1. Advantages:
   • Cost-Effectiveness: Glass cuvettes are generally more affordable than quartz cuvettes, making them a more budget-friendly option.
   • Good Visible Light Transmission: Glass cuvettes perform well in the visible light spectrum, making them suitable for experiments that do not require UV or IR measurements.
2. Limitations:
   • Limited Wavelength Range: Glass cuvettes have a limited wavelength range compared to quartz. They do not transmit UV light well, typically only suitable for measurements in the visible light spectrum (approximately 340 nm and above).
   • Lower Chemical Resistance: Glass cuvettes are generally less resistant to harsh chemicals compared to quartz cuvettes, potentially limiting their use with certain samples.

In conclusion, the selection of quartz or glass for a flow-through cuvette depends on the specific needs of the spectrophotometric experiment, such as the required wavelength range, chemical compatibility, temperature resistance, and budget constraints.

IV. Advantages

Flow-through cuvettes offer several advantages over traditional cuvettes, making them a valuable tool in various scientific applications. The key advantages of flow-through cuvettes include:

1. Real-Time Analysis: Flow-through cuvettes allow for continuous or real-time analysis of samples. The continuous flow of the sample through the cuvette enables monitoring of changes over time, providing valuable insights into dynamic processes and reaction kinetics.
2. Sample Efficiency: Flow-through cuvettes are designed to handle small sample volumes efficiently. They minimize sample wastage and allow for analysis using limited or precious samples, making them suitable for applications where sample volume is limited.
3. Continuous Monitoring: With flow-through cuvettes, samples can be continuously monitored during analysis. This is particularly advantageous for processes with time-dependent changes, as it enables researchers to observe the progression of reactions, detect intermediates, and monitor the kinetics of biochemical or chemical reactions.
4. Reduced Cross-Contamination: Flow-through cuvettes minimize the risk of cross-contamination between samples. The continuous flow of the sample reduces the possibility of carryover from previous samples, enhancing the reliability and accuracy of measurements.
5. High Throughput Capability: Flow-through cuvettes are well-suited for high-throughput analysis, where multiple samples need to be analyzed rapidly. They allow for efficient sample introduction and continuous analysis, reducing the time required for experimentation and increasing overall productivity.
6. Dynamic Range: Flow-through cuvettes offer a wide dynamic range for measurements. By adjusting the flow rate or path length, they can accommodate samples with varying concentrations, ensuring accurate and reliable measurements across a broad range of sample types.
7. Compatibility with Automation: Flow-through cuvettes can be easily integrated into automated systems. They can be coupled with robotic sample handlers, liquid handling systems, or spectrophotometric instruments, allowing for seamless automation of analysis workflows and reducing human error.
8. Temperature and Pressure Control: Some flow-through cuvettes are equipped with built-in temperature or pressure control mechanisms. These features enable researchers to study temperature-dependent reactions or perform experiments under controlled pressure conditions, expanding the range of experimental possibilities.

In summary, flow-through cuvettes offer advantages such as real-time analysis, sample efficiency, continuous monitoring, reduced cross-contamination, high throughput capability, wide dynamic range, compatibility with automation, and temperature/pressure control. These advantages make flow-through cuvettes a valuable tool in various scientific disciplines, ranging from biochemistry and molecular biology to industrial quality control and environmental analysis.

V. Types of Flow-through Cuvettes

Flow-through cuvettes come in a variety of designs tailored to accommodate different experimental needs. These designs primarily revolve around factors such as the path length of the cuvette, the volume capacity, and specialized attributes such as temperature control or pressure resistance.

A. Based on Path Lengths

1. Short Path Length Cuvettes: Short path length flow-through cuvettes are typically used for samples with high absorbance, as the shorter path length allows for a smaller amount of light to be absorbed by the sample, preventing saturation of the detector.
2. Long Path Length Cuvettes: These cuvettes are designed for applications involving samples with low absorbance. A longer path length increases the amount of light interacting with the sample, thereby enhancing the sensitivity of the measurement.

B. Based on Volume Capacities

1. Microvolume Cuvettes: Microvolume flow-through cuvettes are designed to work with small amounts of samples, typically in the microliter range. These are ideal for situations where the sample is scarce or expensive.
2. Macrovolume Cuvettes: Macrovolume cuvettes can accommodate larger sample volumes and are ideal for applications where sample size is not a limiting factor.

C. Specialized Types

1. Temperature-Controlled Cuvettes: These flow-through cuvettes are equipped with mechanisms to regulate the temperature of the sample. They are often used for kinetic studies or other experiments that require precise temperature control.
2. Pressure-Resistant Cuvettes: Pressure-resistant flow-through cuvettes are designed to withstand high pressures, making them suitable for applications such as high-performance liquid chromatography (HPLC) and other high-pressure techniques.
3. Custom Cuvettes: Customized flow-through cuvettes are designed to cater to specific needs that are not met by standard cuvette designs. They may incorporate unique path lengths, and volume capacities, or be made of specific materials to suit a particular experimental setup.

VI. Applications of Flow-through Cuvettes

Flow-through cuvettes have been an integral part of a myriad of scientific fields, with applications spanning from biochemistry to environmental analysis, due to their ability to provide continuous, real-time monitoring and sample efficiency.

1. Biochemistry and Molecular Biology

In the realm of biochemistry and molecular biology, flow-through cuvettes are commonly used in kinetic studies. They facilitate real-time tracking of enzymatic reactions or ligand binding, as the cuvette design enables the continuous flow of reactants and simultaneous monitoring of reaction progress.

2. Clinical Diagnostics

Flow-through cuvettes have a significant role in clinical diagnostics, particularly in automated biochemical analysis. Their ability to manage small sample volumes efficiently and accurately makes them suitable for handling patient samples, which are often limited in volume.

3. Environmental Science

Environmental scientists often employ flow-through cuvettes for monitoring water quality. These cuvettes enable continuous tracking of parameters such as pH, conductivity, and turbidity, or the detection of specific pollutants in a water source.

4. Pharmaceutical Industry

The pharmaceutical industry utilizes flow-through cuvettes in the quality control and analysis of drugs. They enable rapid and efficient assessment of parameters like purity, concentration, and dissolution rate, providing valuable information in both drug development and production phases.

5. Food and Beverage Industry

Flow-through cuvettes are used in the food and beverage industry for quality control and testing. They help in assessing the color, turbidity, and other optical properties of food and beverages, as well as detecting contaminants.

6. Photocatalysis and Solar Energy Research

In the field of photocatalysis and solar energy research, flow-through cuvettes are used to study the efficiency of photocatalysts under different light intensities. Their ability to withstand high light intensity and temperature variations makes them well-suited for these applications.

In summary, flow-through cuvettes, with their unique design, offer the capability of real-time monitoring and efficiency in handling small volumes. This makes them a versatile tool with a broad spectrum of applications across multiple scientific disciplines.

VII. Challenges in Using Flow-through Cuvettes

While flow-through cuvettes offer numerous advantages, they also present certain challenges that users should be aware of. These challenges include:

1. System Integration: Integrating flow-through cuvettes into existing analytical systems can be complex. Proper alignment and connection of tubing, pumps, and detectors are essential for optimal performance. An incorrect setup may lead to inconsistent or unreliable results.
2. Sample Compatibility: Compatibility between the sample and the cuvette material is crucial. Some samples may interact with the cuvette material, leading to chemical reactions, adsorption, or leaching of substances that could interfere with the analysis. Careful consideration of sample-cuvette compatibility is necessary to ensure accurate and reliable measurements.
3. Sample Contamination: Flow-through cuvettes are susceptible to sample contamination due to the continuous flow of the sample and potential exposure to external contaminants. Adequate precautions must be taken to prevent contamination, such as using clean tubing, properly rinsing the cuvette system between samples, and maintaining a clean experimental environment.
4. Bubble Formation: Air bubbles can form within the flow-through cuvette, leading to inaccuracies in measurements. These bubbles may cause light scattering or alter the flow dynamics, affecting the sample’s optical properties. Proper degassing techniques and careful sample introduction can help minimize bubble formation.
5. Sensitivity to Flow Rate and Flow Stability: Flow-through cuvettes require stable and controlled flow rates to ensure consistent measurements. Variations in flow rate can affect the residence time of the sample in the cuvette and lead to discrepancies in data. Maintaining a stable flow is crucial for reliable results.
6. Optical Path Length Variations: Flow-through cuvettes with longer optical paths may be more prone to variations in optical path length due to factors such as temperature changes or misalignments. These variations can introduce errors in absorbance measurements. Regular calibration and alignment checks can help mitigate this challenge.
7. Instrument Limitations: Flow-through cuvettes may pose compatibility challenges with certain spectrophotometers or other analytical instruments due to differences in cuvette dimensions, port configurations, or flow connection requirements. Ensuring compatibility between the cuvette and the instrument is essential for successful integration.

By being aware of these challenges, users can take necessary precautions, carefully select compatible materials, optimize flow conditions, and properly maintain the cuvette system to minimize potential issues and ensure accurate and reliable measurements with flow-through cuvettes.

VIII. Advancements in Flow-through Cuvette Technology

Advancements in flow-through cuvette technology have led to improved performance, expanded capabilities, and enhanced convenience for users. Some notable advancements include:

1. Miniaturization and Microfluidics: Flow-through cuvettes have benefited from advancements in microfluidic technologies, allowing for miniaturization of cuvette designs. Miniature flow-through cuvettes offer advantages such as reduced sample volumes, faster analysis times, and integration with lab-on-a-chip systems.
2. Integrated Temperature Control: Many modern flow-through cuvettes now incorporate built-in temperature control systems. These systems allow precise regulation of the sample temperature, enabling researchers to study temperature-dependent reactions and perform kinetic analyses under controlled conditions.
3. Advanced Materials and Surface Modifications: The use of advanced materials and surface modifications in flow-through cuvettes has improved their chemical resistance, optical performance, and overall durability. These advancements enhance cuvette longevity, reduce the risk of sample contamination, and enable compatibility with a wider range of sample types.
4. Automation and Connectivity: Flow-through cuvettes have embraced automation and digital connectivity, allowing for seamless integration with analytical instruments and data collection systems. Automated sample introduction, flow control, and data acquisition enable high-throughput analysis, reduce human error, and enhance experimental efficiency.
5. Optical Design Improvements: Advances in optical design have led to improved light transmission and minimized light scattering in flow-through cuvettes. This results in enhanced signal-to-noise ratios, increased sensitivity, and improved accuracy in absorbance measurements.
6. IoT Integration and Remote Monitoring: The integration of flow-through cuvettes with the Internet of Things (IoT) technology has opened up new possibilities for remote monitoring and control. Researchers can monitor experiments, collect data, and make adjustments in real-time from remote locations, improving experimental flexibility and efficiency.
7. Specialized Designs for Specific Applications: Flow-through cuvette technology has evolved to cater to specific application requirements. Specialized designs, such as high-pressure-resistant cuvettes for HPLC or biocompatible cuvettes for biomedical applications, provide solutions tailored to unique experimental needs.

These advancements in flow-through cuvette technology have expanded the scope of applications, improved accuracy and reliability, and enhanced user experience. As technology continues to progress, flow-through cuvettes are expected to become even more versatile, user-friendly, and integrated with advanced analytical techniques.

IX. Conclusion

A. Reiteration of the Importance of Flow-through Cuvettes

In conclusion, flow-through cuvettes, with their unique design and capabilities, play a pivotal role in many scientific fields. They enable real-time analysis and reduce the risk of contamination, offering significant advantages over traditional cuvettes.

B. Future Prospects of Flow-through Cuvettes

Looking ahead, the future of flow-through cuvettes is promising. With ongoing technological advancements, we can anticipate even more refined, efficient, and diversified applications for these tools. As we continue to explore their potential, flow-through cuvettes will undoubtedly play an ever-increasing role in scientific research and industrial processes.

Flow-through cuvettes offer several advantages over traditional cuvettes. They enable real-time analysis, continuous monitoring, and efficient handling of small sample volumes. These cuvettes reduce cross-contamination and are compatible with automation, allowing for high-throughput analysis. They have a wide dynamic range and can incorporate temperature and pressure control mechanisms. Overall, flow-through cuvettes are valuable tools in various scientific disciplines, including biochemistry, molecular biology, clinical diagnostics, environmental science, and industrial quality control.
