(VLV25) 25.4mm (1″) Cuvette for Lovibond Instruments, Quartz /Optical Glass Material, Bonded / Fused / Molded, Lightpath 25.4mm
$6.00 – $149.00

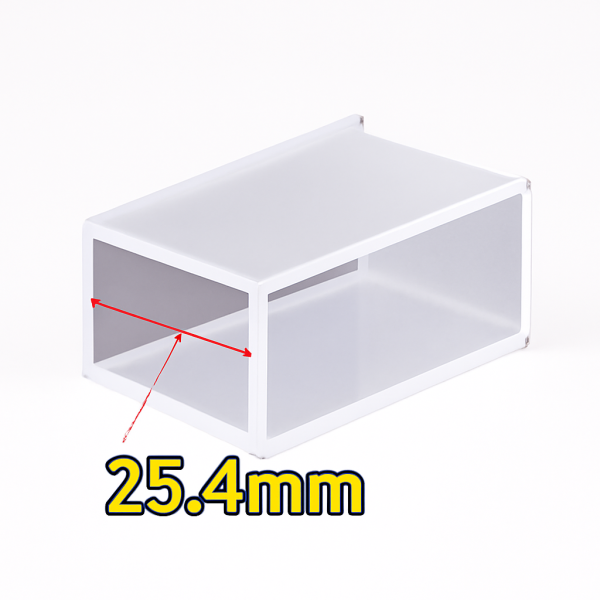

This glass/quartz absorption cuvette is for Lovibond instruments, with a path length of 25.4 mm. The price is for 1 piece.
Add to Wishlist
Add to Wishlist
- Type: Fused
Description
Cuvette Specifications
1 | 2 | 3 | 4 | |||
---|---|---|---|---|---|---|
Type | 25.4mm Glass Cuvette | Optical Path Length | 25.4 mm | |||
Article No. | VLV25 | Volume | 15 ml | |||
Measuring Method | Absorption Cells | Material | Optical Glass / Quartz | |||
Number of Windows | 2 | Wavelength Range | VIS (350 - 2000 nm) or UV-vis (190 - 2500 nm) | |||

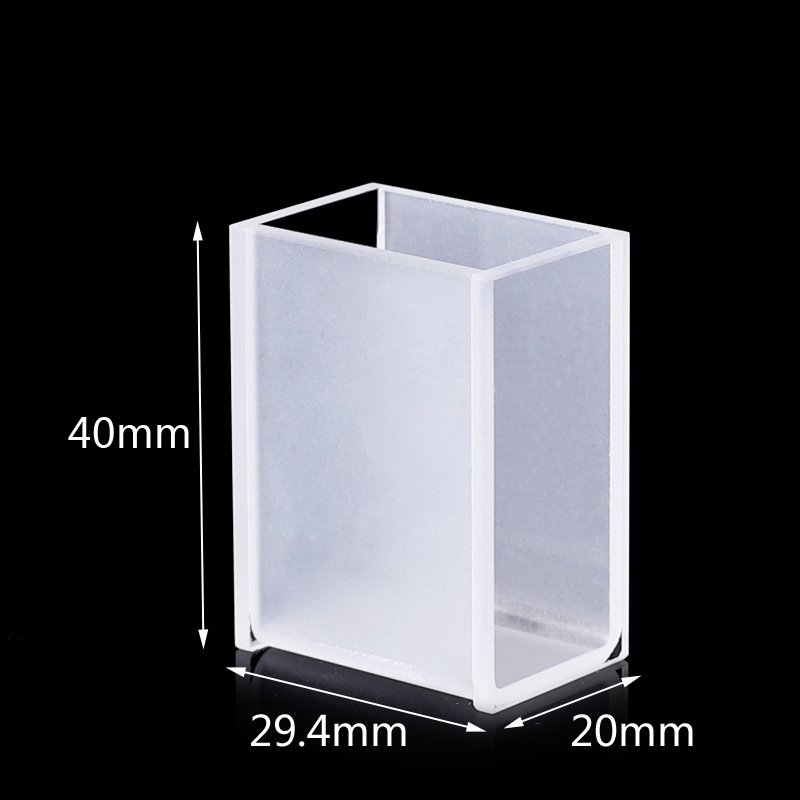

Outside Dimensions | Inside Dimensions | |||||
Height | 40 mm | Width | 16 mm | |||
Width | 20 mm | Depth | 25.4 mm | |||
Depth | 29.4 mm | Center Height (Z) | 8.5 - 20 mm | |||
Fabrication Method | Boned/Fused/Molded* | Package | Cell Only |
Comparison of Fabrication Types
1 | 2 | 3 | 4 | ||
---|---|---|---|---|---|
*Molded | *Fused | *Bonded | |||
Visible ( 350 - 2000 nm) | Yes | Yes | Yes | ||
Transmission Matched | On Request | No | No | ||
Transmission > 80% | Yes | Yes | Yes | ||
Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
Resistant to Organic Solvents | Yes | Yes | No | ||
Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
Usable upto 1200°C (2192°F) | Yes | No | No | ||
0 Variations Reading | On Request | No | No | ||
Fabrication | Molded | Assembled with Glass Powder | Assembled with Glue | ||
Adhesives | No | No | Yes | ||
Storage | Short Term Storage | Clean After Use | Clean After Use | ||
Available Material | Optical Glass Material | ||||
Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each glass cuvette and cell has excellent transmission from 350nm to 2000nm under visible light range. |
